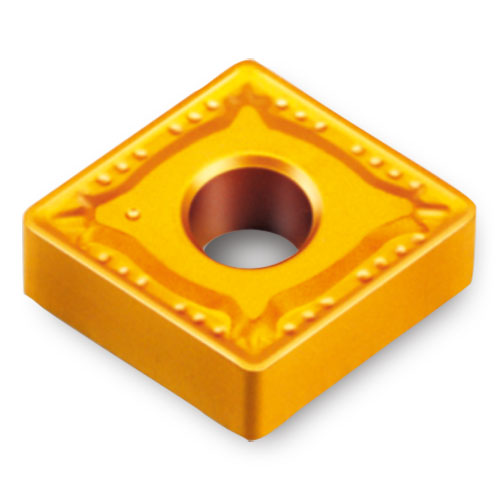

CNMG433WT TT5100
Item #: IC065514951
Brand: Ingersoll
Model #: 5514951
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Min D.O.C. | 0.039″ |
| Corner Radius (RE) | 0.047″ |
| Depth of Cut Maximum (APMX) | 0.197″ |
| Insert Size | 433 |
| Min. Turning Feed (ft(min)) | 0.008″ |
| Cutting Edge Length (L) | 0.508″ |
| Max. Turning Feed (ft(max)) | 0.031″ |
| Insert Thickness (S) | 0.187″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees |
| Series/List # | WNMG 433-WT |
| Coating | TiCN+Al2O3 |
| Body Material | Carbide |
| Grade | TT5100 |
