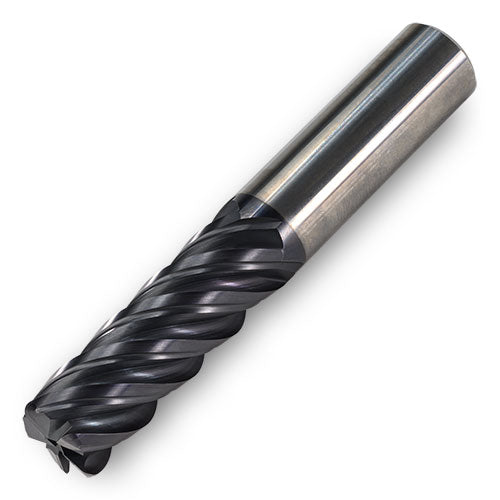

47D-6216S6RC12S5 IN2006
Item #: IC049586492
Brand: Ingersoll
Model #: 9586492
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Application | Helical Interpolation | Rampdown | Shouldering |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Depth of Cut Maximum (APMX) | 1-5/8″ |
| Body Material | Steel |
| Overall Length (OAL) | 3-1/2″ |
| Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 5 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 43 Degrees |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| End Shape | Square |
