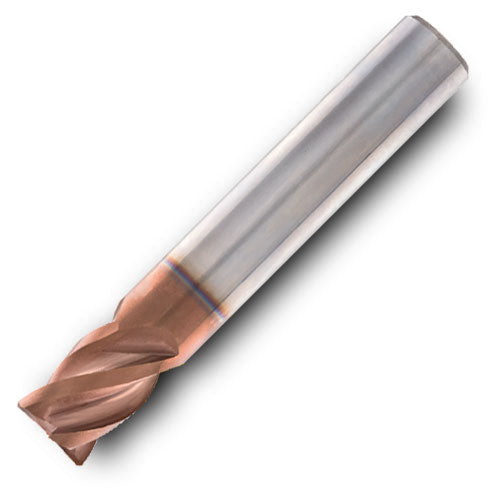

47C-7575S7RQ02 IN2205
Item #: IC045669393
Brand: Ingersoll
Model #: 5669393
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Application | | Drill Mill | Drilling | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Grade | IN2205 |
| Overall Length (OAL) | 4″ |
| Body Material | Steel |
| Coating | AlTiCrSiN |
| Decimal Equivalent | 3/4″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 35-37 Degrees |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.023 Chamfer |
| End Shape | Square |
