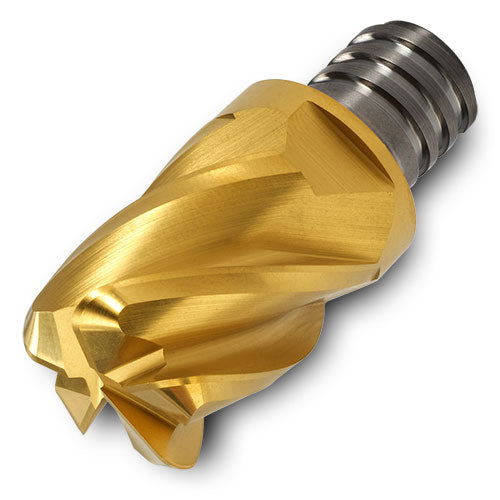

47DE1215TWRQ37 IN2005
Item #: IC042928003
Brand: Ingersoll
Model #: 2928003
| Product Specifications | |
|---|---|
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Flute Helix Angle (FHA) | 36-38 Degrees |
| Cutting Diameter (DC) | 1-1/4″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 5 |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 1-1/2″ |
| Ramping Angle Maximum (RMPX) | 0.5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1.181″ |
| Body Material | Steel |
| Functional Length (LF) | 2.165″ |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.375 R |
