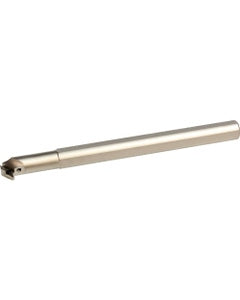

A32SSVZBR1640AE Right-Hand, Positive Rake, Coolant-Through Boring Bar
Item #: KY96THC13560
Brand: Kyocera Precision Tools
Model #: THC13560
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 250 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 250 mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 72.5 mm |
| Rake Angle Radial (GAMF) | -9 Degrees |
| Shank Height (H) | 31 mm |
| Series/List # | DYNB |
| Shank Length (LS) | 177.5 mm |
| Body Material | Steel |
| Functional Width (WF) | 28 mm |
| Style | A...SVZB-AE |
| Master Insert Identification (MIID) | | VBMT33 | VBGT33 | VBGW33 VCGT33 | |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 40 mm |
| Weight of Item (WT) | 3.2485 |
