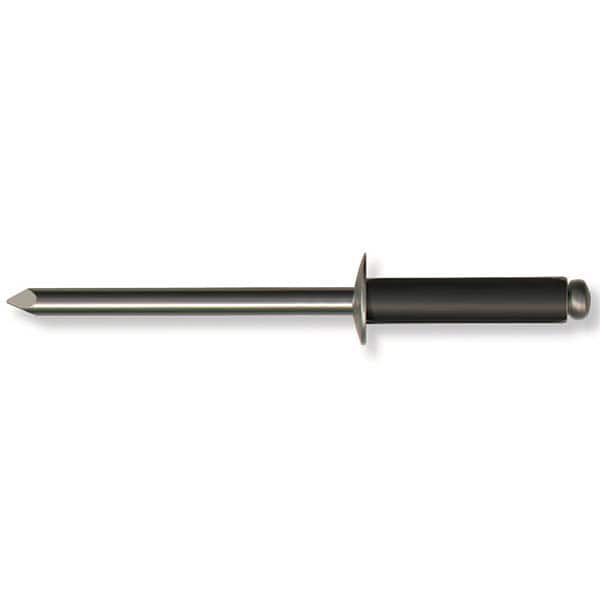

Marson - Blind Rivets Type: Color Coded Head Type: Button
Item #: 10330520
Brand: Marson
Model #: M53100
Features and Benefits
Color coded rivets are color coded based on material for easy identification.
Button head fasteners have cylindrical heads with curved tops and flat bearing surfaces. They slightly protrude out of the workpiece and are used for aesthetic purposes.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Product Specifications
Blind Rivets; Type: Color Coded ; Head Type: Button ; Size Code: 44 ; Rivet Material: Aluminum ; Mandrel Material: Aluminum ; Minimum Grip (Decimal Inch): 0.1880
| Type | Color Coded |
| Head Type | Button |
| Size Code | 44 |
| Rivet Material | Aluminum |
| Mandrel Material | Aluminum |
| Minimum Grip (Decimal Inch) | 0.1880 |
| Maximum Grip (Decimal Inch) | 0.2500 |
| Head Diameter (Decimal Inch) | 0.25 |
| Minimum Hole Diameter (Decimal Inch) | 0.1290 |
| Maximum Hole Diameter (Decimal Inch) | 0.1330 |
| Mandrel Material Grade | 5056 |
| Drill Size (Wire) | #30 |
| Body Diameter (Inch) | 0.125 |
| Color | Black |
| Shear Strength (Lb.) | 155 |
| Tensile Strength (Lb.) | 240 |
| Head Height (Decimal Inch) | 0.0400 |
