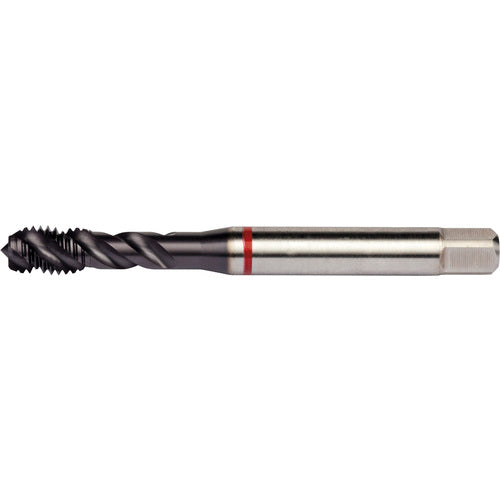

M8x1.0 HSS-E PM 3 Flute 6H 45 Degree Red Shark Machine Tap Spiral Flute-TiAlN/Top E-code # E766M8X1.0
Item #: HP437350465
Brand: Dormer
Model #: 7350465
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M8 |
| Special Feature | Red Shark |
| Thread Pitch (TP) | 1 mm |
| Standard | DIN ANSI |
| Thread Standard | MF |
| Tool Type | Machine Tap |
| Overall Length (OAL) | 90 mm |
| Chamfer | 2P-3P |
| Thread Cutting Part Length (THL) | 35 mm |
| Coating | TiAlN/Top |
| Usable Length (LU) | 35 mm |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Style | Semi-Bottoming |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Steel |
| Length Group | 2.5xD |
| Cutting Edge Material | HSS-E PM |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6H |
