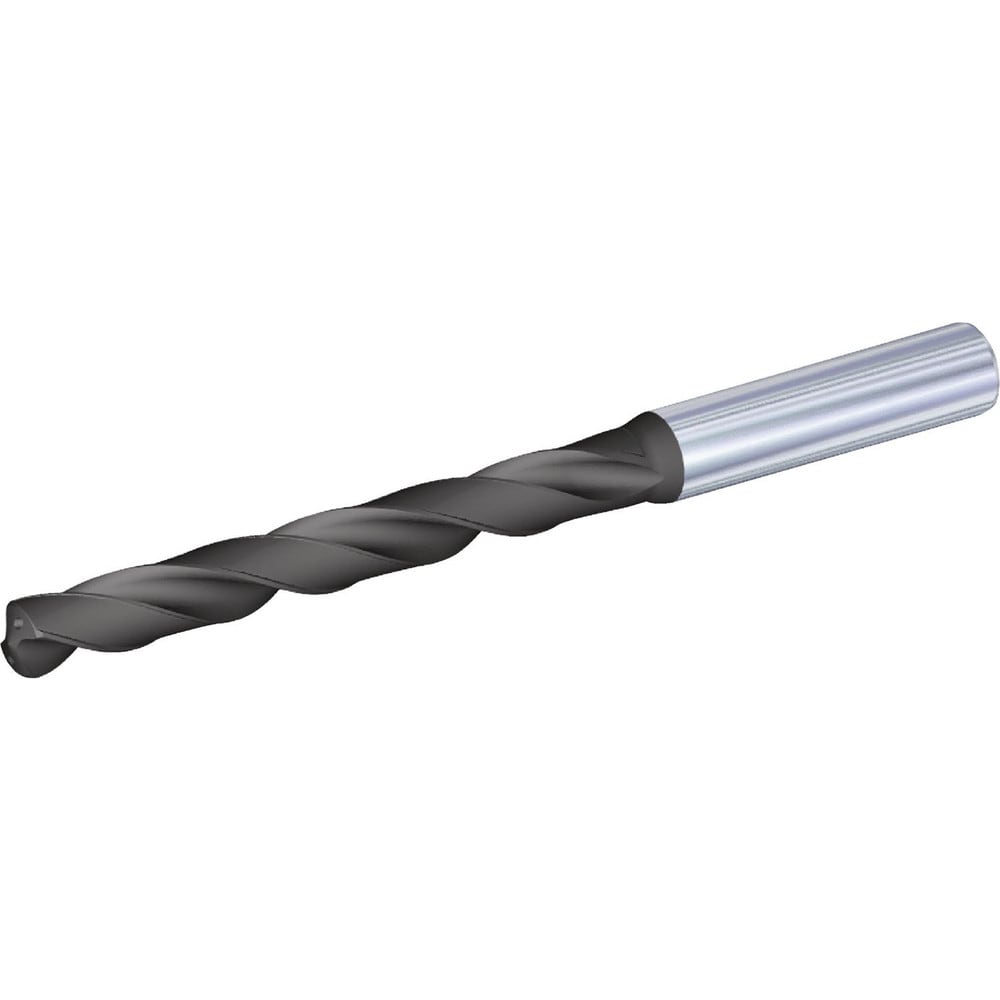

Brand: Widia / Part #: 4156964

Brand: Widia / Part #: 4156964


Item #: 03515566
Brand: Widia
Model #: 4156964

Product Specifications

Drill Bit Size (mm) 17.40
Overall Length (mm) 185.0000
Flute Length (mm) 135.00
Tool Material Carbide
Coating/Finish AlCrN
Drill Point Angle 140
Shank Type Cylindrical
Coolant Through Yes
Flute Type Spiral
Series TDS413A
Point Type Four Facet
Cutting Direction Right Hand
Tool Application Deep Hole Drilling
Spiral Type Regular
Drill Bit Diameter Tolerance 0.000300 to 0.001000 in
Number Of Flutes 2
Primary Workpiece Material Cast Iron
Primary Workpiece Material Code K
Drill Bit Grade WK15PD
Drill Point Length (mm) 3.02
Shank Diameter (mm) 18.0000
Shank Length (mm) 48.000
Flute By Diameter Ratio 6xD
Maximum Drilling Depth (mm) 113.00
$859.35
