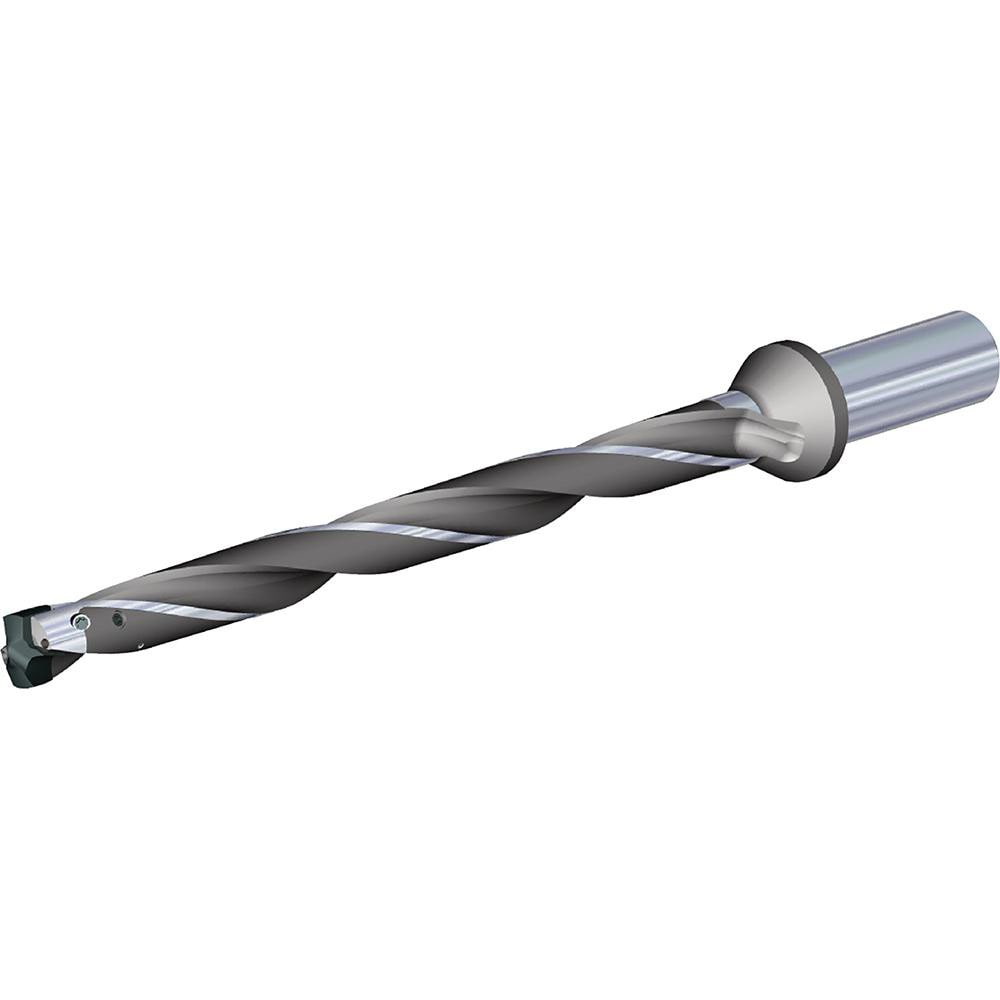

Brand: Widia / Part #: 6681013

Brand: Widia / Part #: 6681013


Item #: 90220484
Brand: Widia
Model #: 6681013

Product Specifications

Minimum Drill Diameter (Decimal Inch) 1.1812
Maximum Drill Diameter (Decimal Inch) 1.2204
Drill Depth by Diameter Ratio 12xD
Maximum Drill Depth (Decimal Inch) 14.6457
Shank Type Cylindrical
Insert Style TDMX
Shank Diameter (Inch) 1-1/4
Shank Diameter (Decimal Inch) 1.2500
Insert Seat Size O
Tool Material Steel
Compatible Insert Style TDMX
Compatible Insert Size Code O
Overall Length (Decimal Inch) 19.0157
Overall Length (Inch) 19-1/64
Series TDMX
Toolholder Style TDMX
Flute Length (Decimal Inch) 14.6457
Body Length (Decimal Inch) 15.8700
Shank Length (Decimal Inch) 2.3622
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Coolant Hole Diameter (Decimal Inch) 0.1969
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$925.91
