Brand: Sandvik Coromant / Part #: 8353027
Item #: 67708693
Brand: Sandvik Coromant
Model #: 8353027

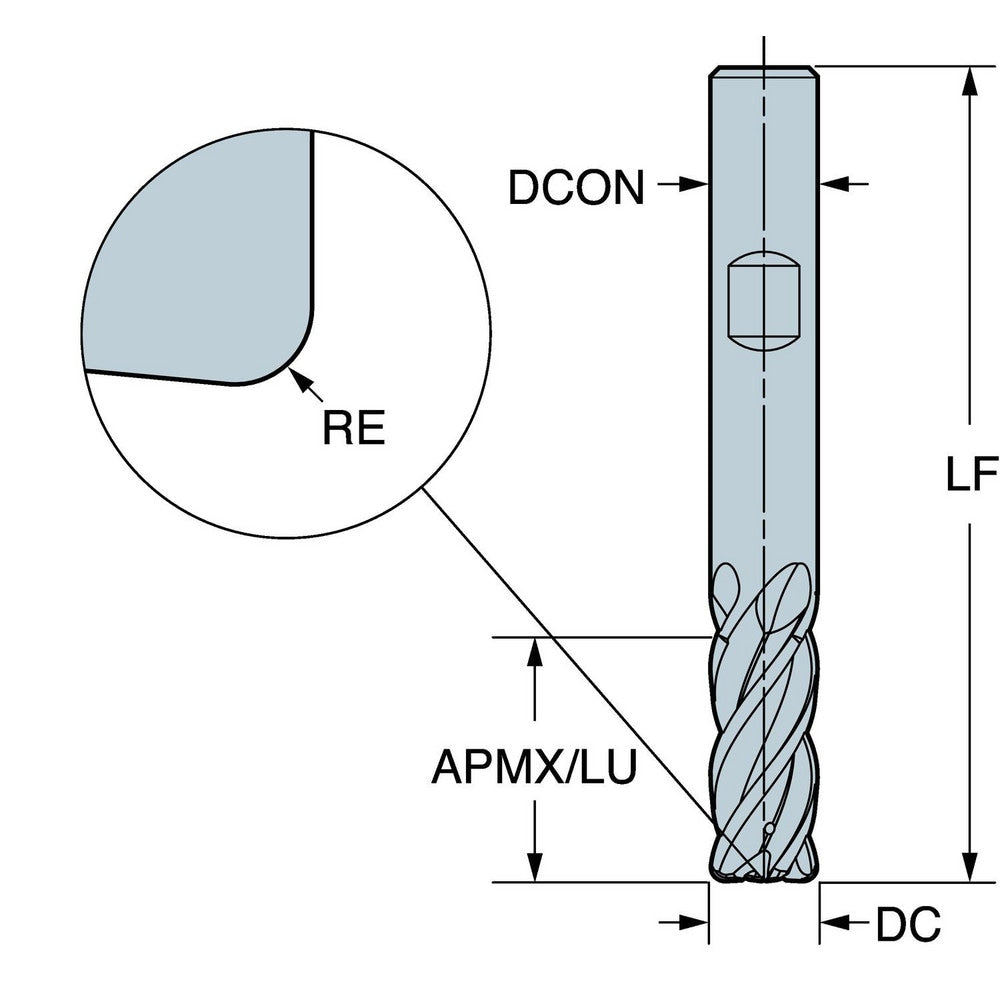

Product Specifications
| Mill Diameter (mm) | 4.00 |
| Corner Radius (mm) | 0.50 |
| Coating/Finish | TiAlCrSiN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Overall Length (mm) | 57.0000 |
| Length of Cut (mm) | 9.0000 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 0.1575 |
| Flute Direction | Right Hand |
| Helix Angle | 38 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Type | Standard |
| Extended Reach | No |
| Shank Type | Weldon |
| Centercutting | Yes |
| Material Removal Type | Roughing |
| Shank Diameter (mm) | 6.0000 |
| Minimum Helix Angle | 35 |
| Maximum Helix Angle | 45 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Series | CoroMill? Plura |
| Material Application | Stainless Steel; Superalloys & Titanium |
| Coating Classification | PVD |
| Helix Style | Variable |
| Manufacturers Catalog Number | 2S342-0400-050-PA P2BM |
