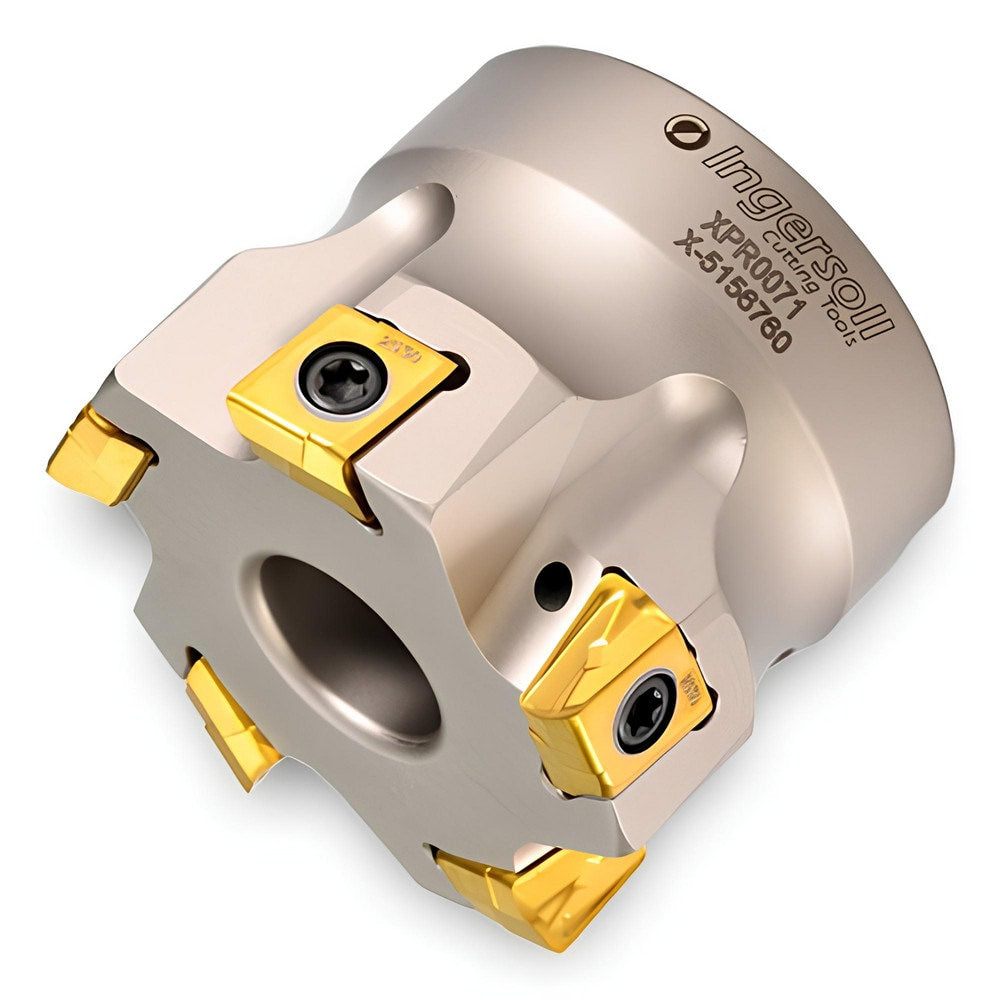

Brand: Ingersoll Cutting Tools / Part #: 2925710
Item #: 96677455
Brand: Ingersoll Cutting Tools
Model #: 2925710
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Minimum Cutting Diameter (Inch) | 2 |
| Minimum Cutting Diameter (mm) | 50.80 |
| Maximum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3850 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | 313 |
| Maximum Ramping Angle | 0.8 |
| Cutter Style | EJ5C |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 deg |
| Rake | Negative |
| Series | EJ5C |
| Overall Height (Decimal Inch) | 1.5700 |
| Keyway Width (Inch) | 5/16 |
| Keyway Width (Decimal Inch) | 0.3120 |
| Pitch Type | Close |
| Tool Application | Facing; Helical Interpolation; Ramping; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Cutting Edge Length (Decimal Inch) | 0.3850 |
| Complete Insert Compatibility | CGM313R0? |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | EJ5C-02R01 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 5 |
