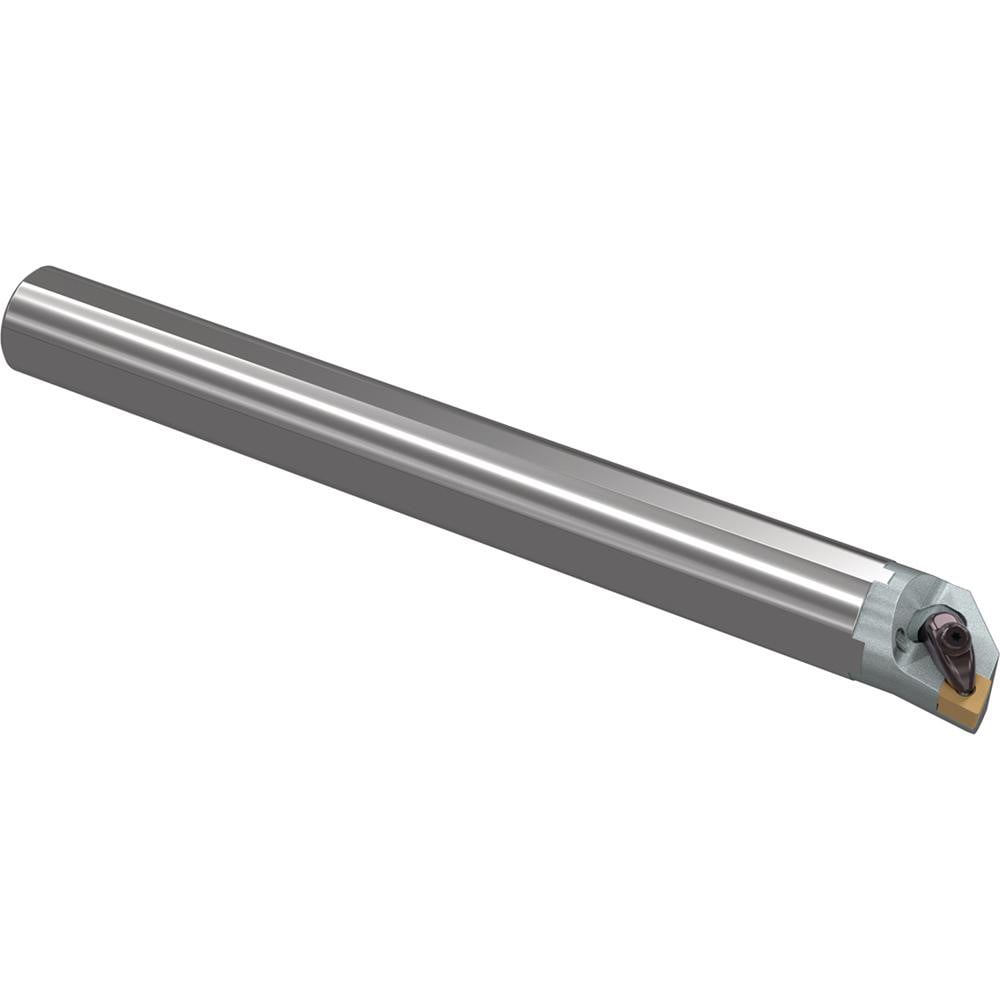

Brand: Widia / Part #: 5696291

Brand: Widia / Part #: 5696291


Item #: 02777795
Brand: Widia
Model #: 5696291

Product Specifications

Minimum Bore Diameter (Decimal Inch) 2.4000
Maximum Bore Depth (Decimal Inch) 6.0000
Toolholder Style DCLNL
Tool Material Steel
Shank Diameter (Decimal Inch) 2.0000
Hand of Holder Left Hand
Shank Diameter (Inch) 2
Overall Length (Decimal Inch) 16.0000
Overall Length (Inch) 16
Compatible Insert Size Code CN..432
Insert Holding Method Clamp
Compatible Insert Shape Diamond
Insert Included No
Rake Negative
Cutting Direction Left Hand
Rake Angle -12.000
Lead Angle -5.000
Series A-DCLN
Insert Inscribed Circle (Inch) 1/2
Compatible Insert Thickness (Decimal Inch) 0.1875
Compatible Insert Thickness (mm) 4.76
Multi-use Tool Yes
Cutting Tool Application Boring
Back of Bar to Cutting Edge (Decimal Inch) 2.2810
Center to Cutting Edge (Decimal Inch) 1.2810
Primary Workpiece Material Universal
Multi-Use Application Boring
Number of Inserts Used on Toolholder 1
Insert Thickness (Decimal Inch) 0.1875
Insert Thickness (Inch) 3/16
Coolant Hole Diameter (Decimal Inch) 0.2500
Number of Inserts Included in Order 0
Manufacturers Catalog Number A32VDCLNL4KC3
Radial Rake -5
Coolant Through Yes
$472.61
