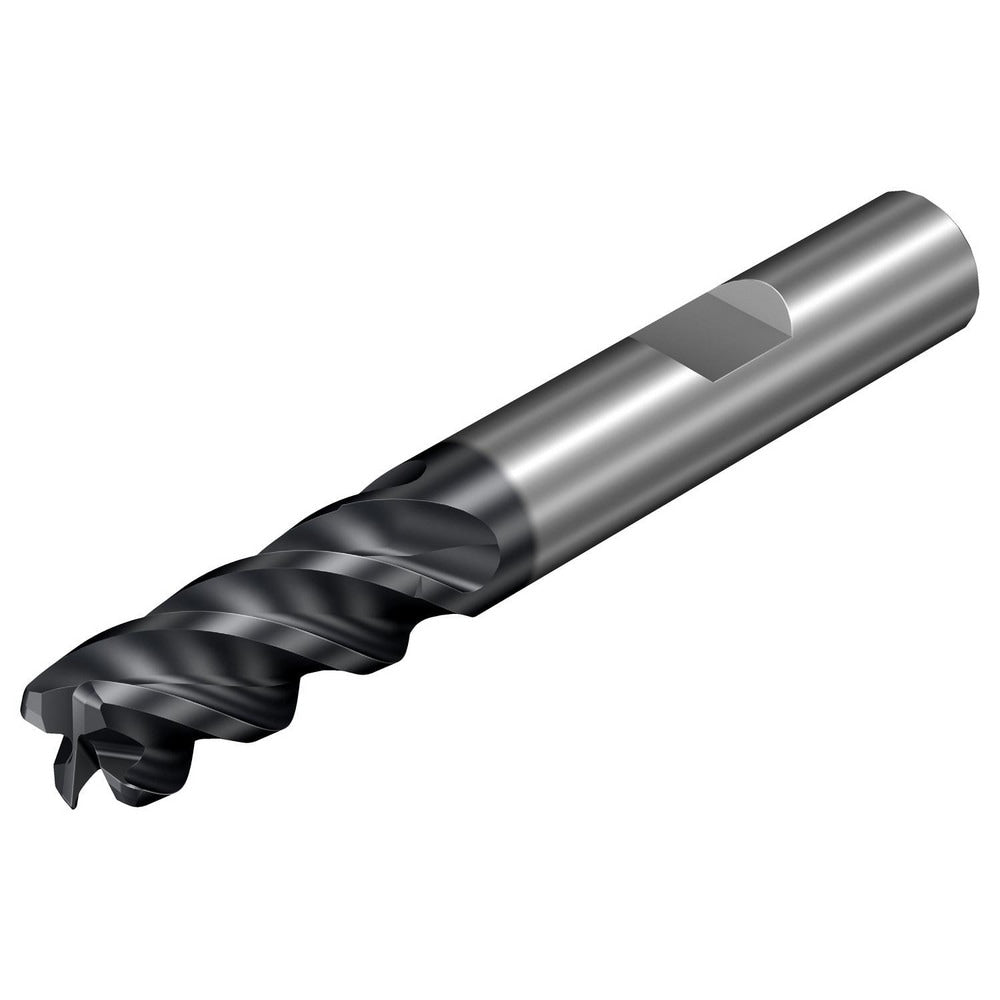

Brand: Sandvik Coromant / Part #: 8351945
Item #: 67701276
Brand: Sandvik Coromant
Model #: 8351945
Product Specifications
| Mill Diameter (mm) | 9.53 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Coating/Finish | TiAlSiN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Overall Length (Inch) | 3 |
| Length of Cut (Inch) | 7/8 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Mill Diameter (Decimal Inch) | 0.3752 |
| Flute Direction | Right Hand |
| Helix Angle | 38 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Type | Standard |
| Extended Reach | No |
| Shank Type | Weldon |
| Centercutting | Yes |
| Material Removal Type | Roughing |
| Shank Diameter (Inch) | 3/8 |
| Minimum Helix Angle | 35 |
| Maximum Helix Angle | 45 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Super Alloys & Titanium |
| Secondary Workpiece Material Code | S |
| Series | CoroMill? Plura |
| Material Application | Cast Iron; Steel |
| Coating Classification | PVD |
| Helix Style | Variable |
| Manufacturers Catalog Number | 2S342-0953-076CMB M2CM |
