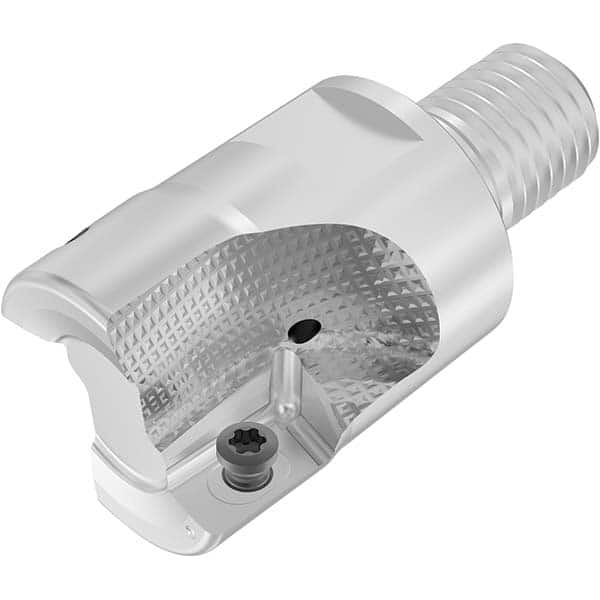

Seco - Indexable Square-Shoulder End Mills Cutting Diameter (mm): 25.00 Cutting Diameter (Inch): 0.984
Item #: 18138925
Brand: Seco
Model #: 03336103
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (mm): 25.00 ; Cutting Diameter (Inch): 0.984 ; Shank Type: Combimaster ; Modular Connection Size: M12 ; Overall Length/Projection (mm): 40.00 ; Lead Angle: 90
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Inch) | 0.984 |
| Shank Type | Combimaster |
| Modular Connection Size | M12 |
| Overall Length/Projection (mm) | 40.00 |
| Lead Angle | 90 |
| Series | R217.69 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 15.00 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Decimal Inch) | 25.0000 |
| Head Length (mm) | 40.00 |
| Weldon Flat | No |
| Insert Compatibility | XOEX; XOMX |
| Maximum RPM | 16700.000 |
| Toolholder Material | Steel |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Series | R217.69 |
| Lead Angle | 90 |
| Insert Compatibility | XOEX; XOMX |
| Insert Holding Method | Screw |
