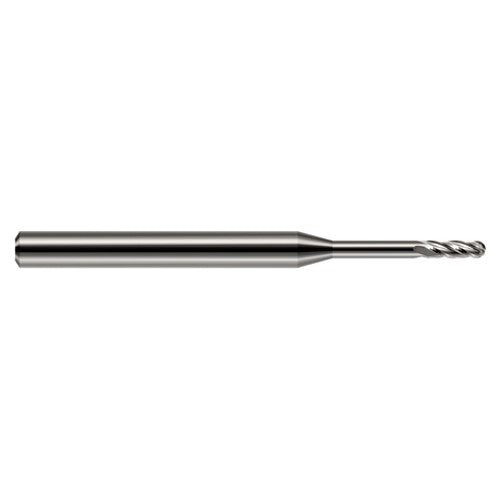

5/64″ Dia. × 1/8″ Shank × 15/64″ DOC × 2″ OAL, Carbide Uncoated, Standard , 4 Flute, Ballnose End Mill
Item #: GE90991178
Brand: Harvey Tool
Model #: 991178
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/64″ |
| Usable Length (LU) | 0.94″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Length Group | 12D |
| Depth of Cut Maximum (APMX) | 15/64″ |
| End Shape | Ball Nose |
| Overall Length (OAL) | 2″ |
| Flute Type | Standard |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.078125″ |
| Coating | Uncoated |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
