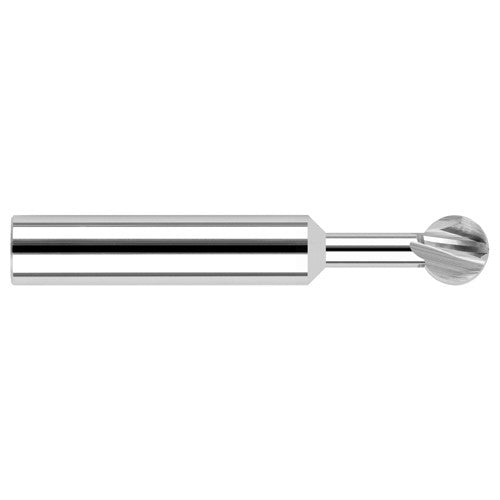

Undercutting End Mills - 0.1406″ (9/64″) Cutter Diameter × 0.2180″ (7/32″) Neck Length × 300° Carbide Undercutting End Mill, 4 Flutes
Item #: GE90984009
Brand: Harvey Tool
Model #: 984009
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 9/64″ |
| Usable Length (LU) | 0.349″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Corner Radius (RE) | 0.0703″ |
| Depth of Cut Maximum (APMX) | 0.13″ |
| Neck Length (LN) | 7/32″ |
| Overall Length (OAL) | 2″ |
| End Shape | Spherical |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.140625″ |
| Coating | Uncoated |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
