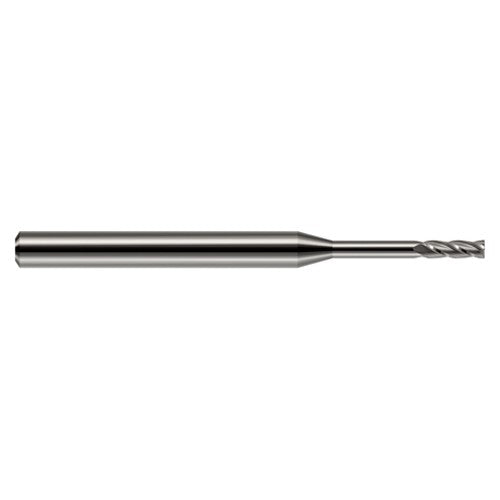

Miniature End Mills - Long Reach, Standard Flute - 0.1250″ (1/8″) Cutter Diameter × 0.3750″ (3/8″) Length of Cut × 1.0000″ (1″) Reach Carbide Square End Mill, 4 Flutes
Item #: GE90972308
Brand: Harvey Tool
Model #: 972308
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/8″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Usable Length (LU) | 1″ |
| Depth of Cut Maximum (APMX) | 3/8″ |
| Neck Length (LN) | 5/8″ |
| Overall Length (OAL) | 2″ |
| Length Group | 8D |
| Cutting Edge Material | Carbide |
| Flute Type | Standard |
| Coating | Uncoated |
| Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
