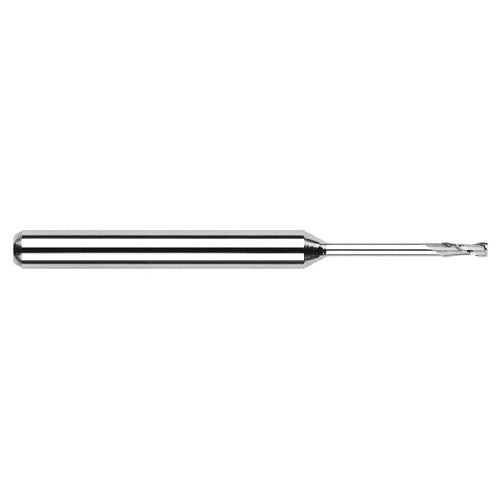

Miniature End Mills - Long Reach, Standard Flute - 0.0780″ (5/64″) Cutter Diameter × 0.2340″ (15/64″) Length of Cut × 0.9400″ Reach Carbide Square End Mill, 2 Flutes
Item #: GE90952078
Brand: Harvey Tool
Model #: 952078
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/64″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Usable Length (LU) | 0.94″ |
| Depth of Cut Maximum (APMX) | 15/64″ |
| Neck Length (LN) | 0.706″ |
| Overall Length (OAL) | 2″ |
| Length Group | 12D |
| Cutting Edge Material | Carbide |
| Flute Type | Standard |
| Coating | Uncoated |
| Decimal Equivalent | 0.078125″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
