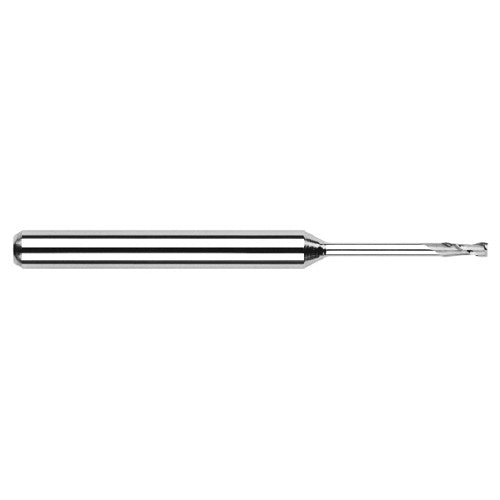

Miniature End Mills - Long Reach, Standard Flute - 0.2500″ (1/4″) Cutter Diameter × 0.7500″ (3/4″) Length of Cut × 1.2500″ (1-1/4″) Reach Carbide Square End Mill, 2 Flutes
Item #: GE90944616
Brand: Harvey Tool
Model #: 944616
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Usable Length (LU) | 1-1/4″ |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Neck Length (LN) | 1/2″ |
| Overall Length (OAL) | 2-1/2″ |
| Length Group | 5D |
| Cutting Edge Material | Carbide |
| Flute Type | Standard |
| Coating | Uncoated |
| Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
