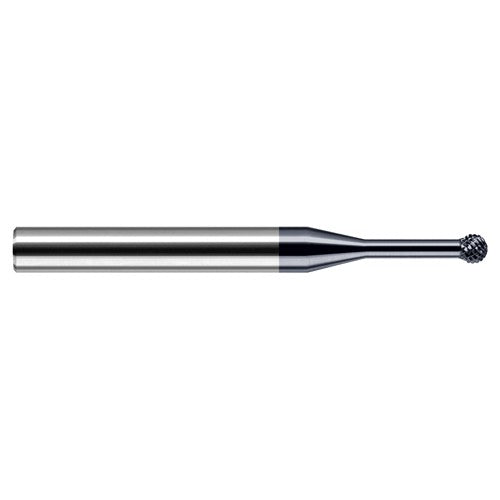

Undercutting End Mills - 0.0470″ (3/64″) Cutter Diameter × 0.1560″ (5/32″) Neck Length × 270° Carbide Deburring Undercut End Mill, 12 RH Teeth, 10 LH Teeth, AlTiN Coated
Item #: GE90926447C3
Brand: Harvey Tool
Model #: 926447-C3
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/64″ |
| Usable Length (LU) | 0.196″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Corner Radius (RE) | 0.0235″ |
| Depth of Cut Maximum (APMX) | 0.04″ |
| Neck Length (LN) | 5/32″ |
| Overall Length (OAL) | 1-1/2″ |
| End Shape | Spherical |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.046875″ |
| Coating | AlTiN |
| Measurement Type | Inch |
