Miniature End Mills - Long Reach, Stub Flute - 0.0780″ (5/64″) Cutter Diameter × 0.0150″ (1/64″) Radius × 0.1170″ Length of Cut × 0.6250″ (5/8″) Reach Carbide Corner Radius End Mill, 3 Flutes - Exact Industrial Supply

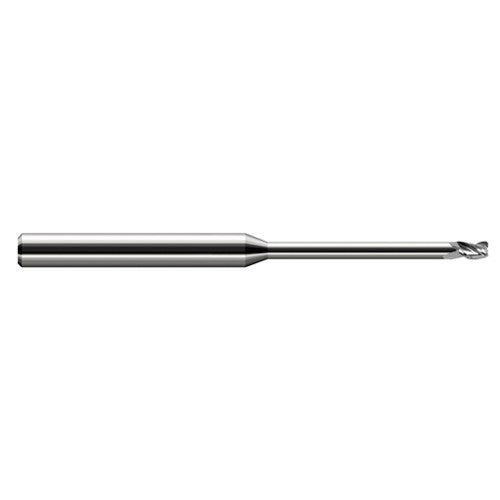

Miniature End Mills - Long Reach, Stub Flute - 0.0780″ (5/64″) Cutter Diameter × 0.0150″ (1/64″) Radius × 0.1170″ Length of Cut × 0.6250″ (5/8″) Reach Carbide Corner Radius End Mill, 3 Flutes


Item #: GE9042978
Brand: Harvey Tool
Model #: 42978

Product Specifications
Cutting Diameter (DC) 5/64″
End Shape Corner Radius
Connection Diameter Machine Side (DCONMS) 1/8″
Usable Length (LU) 5/8″
Depth of Cut Maximum (APMX) 0.117″
Corner Radius (RE) 1/64″
Overall Length (OAL) ‎2-1/2″
Length Group 8D
Cutting Edge Material Carbide
Flute Type Stub
Coating Uncoated
Decimal Equivalent 0.078125″
Flute Count (NOF) 3
Measurement Type Inch
$45.94
