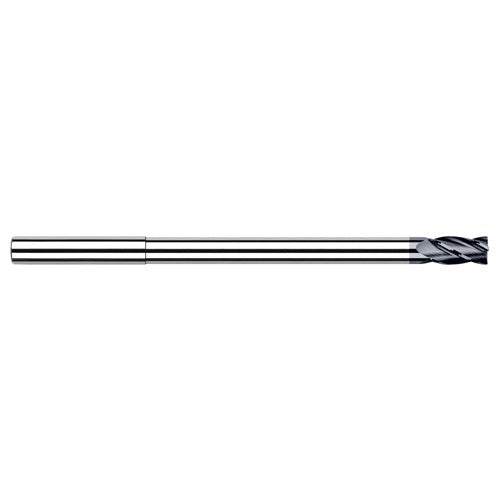

Miniature End Mills - Long Reach, Stub Flute - 0.5000″ (1/2″) Cutter Diameter × 0.0300″ Radius × 0.7500″ (3/4″) Length of Cut × 5.7500″ Reach Carbide Corner Radius End Mill, 4 Flutes, AlTiN Coated
Item #: GE9024032C3
Brand: Harvey Tool
Model #: 24032-C3
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Usable Length (LU) | 5-3/4″ |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 8″ |
| Length Group | Long Reach |
| Cutting Edge Material | Carbide |
| Flute Type | Stub |
| Coating | AlTiN |
| Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
