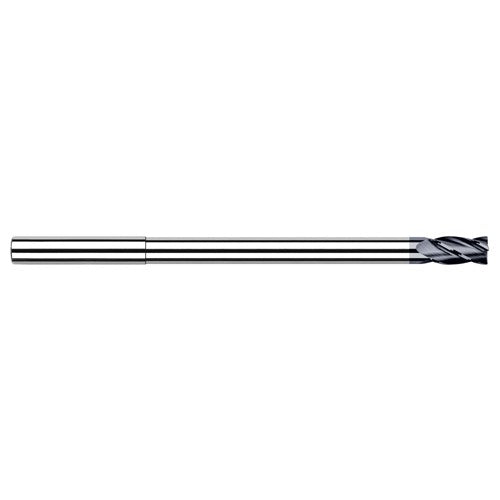

Miniature End Mills - Long Reach, Stub Flute - 0.2500″ (1/4″) Cutter Diameter × 0.0150″ (1/64″) Radius × 0.3750″ (3/8″) Length of Cut × 4.3750″ (4-3/8″) Reach Carbide Corner Radius End Mill, 4 Flutes, AlTiN Coated
Item #: GE9024016C3
Brand: Harvey Tool
Model #: 24016-C3
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Usable Length (LU) | 4-3/8″ |
| Depth of Cut Maximum (APMX) | 3/8″ |
| Corner Radius (RE) | 1/64″ |
| Overall Length (OAL) | 6″ |
| Length Group | Long Reach |
| Cutting Edge Material | Carbide |
| Flute Type | Stub |
| Coating | AlTiN |
| Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
