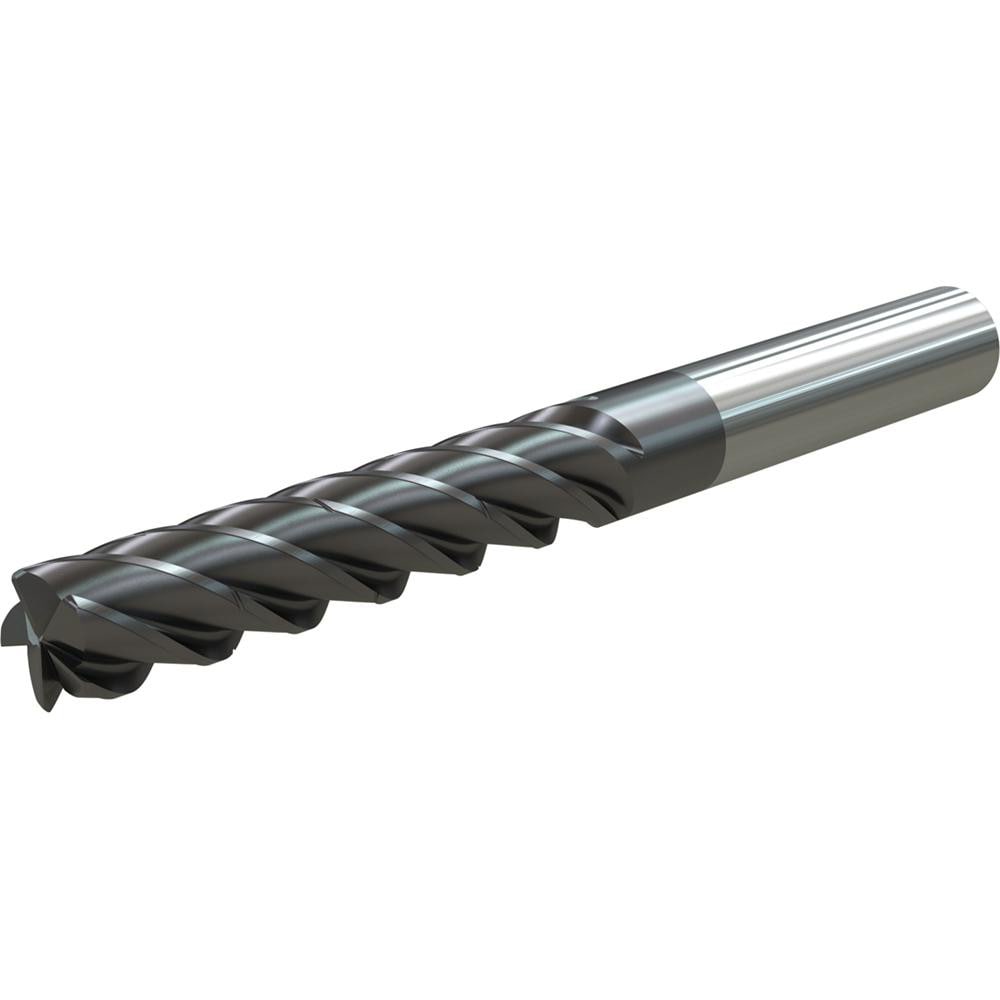

Brand: Widia / Part #: 6853762
Item #: 97967970
Brand: Widia
Model #: 6853762
Product Specifications
| Mill Diameter (Inch) | 1 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Coating/Finish | AlTiN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 5 |
| Single Or Double End | Single |
| Overall Length (Inch) | 7-1/2 |
| Length of Cut (Inch) | 4-1/2 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Close |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Flute Direction | Right Hand |
| Helix Angle | 38 |
| Overall Length (Decimal Inch) | 7.5000 |
| Chipbreaker | Yes |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 4.5000 |
| Length Type | Extended |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Neck Diameter (Decimal Inch) | 0.0000 |
| Reach Length (Decimal Inch) | 4.5000 |
| Reach Length (Inch) | 4-1/2 |
| Minimum Helix Angle | 38 |
| Maximum Helix Angle | 38 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; High Temperature Alloy; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Material Grade | WP15PE |
| Series | 572T |
| Coating Classification | PVD |
| Helix Style | Medium |
