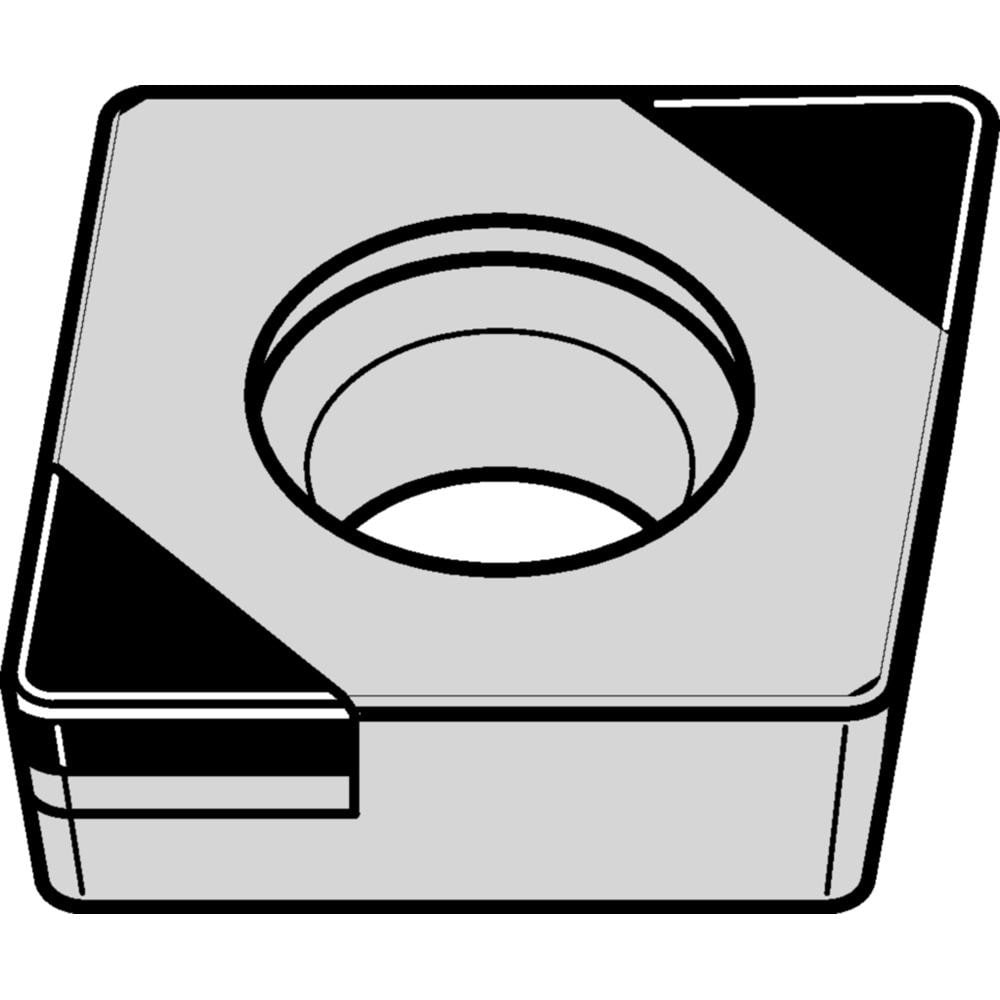

Brand: Widia / Part #: 6904775

Brand: Widia / Part #: 6904775


Item #: 95217576
Brand: Widia
Model #: 6904775

Product Specifications

Insert Style CCGW
Insert Shape Code C
Insert Size Code 432
Insert Shape Diamond
Coating/Finish AlTiN
Manufacturer Grade WBH20P
Corner Radius (Decimal Inch) 0.0311
Insert Material Cubic Boron Nitride (CBN)
Hole Diameter (Decimal Inch) 0.2165
Maximum Depth of Cut (Decimal Inch) 0.2540
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1883
Clearance Code C
Tolerance Code G
Included Angle 80.00
Relief Angle 7.000
Series CCGW
Coating Process PVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.5080
Number Of Cutting Edges 2
Primary Workpiece Material Hard Material
Primary Workpiece Material Code H
Ansi Code CCGW432S0415MT
Iso Code CCGW120408S01015MT
Manufacturers Catalog Number CCGW432S0415MT
Cutting Direction Neutral
Single or Multi Tipped Multi Tipped
Coating Classification PVD
Chip Breaker MT
Cutting Edge Style Chamfered and Rounded
Style CCGW
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$78.16
