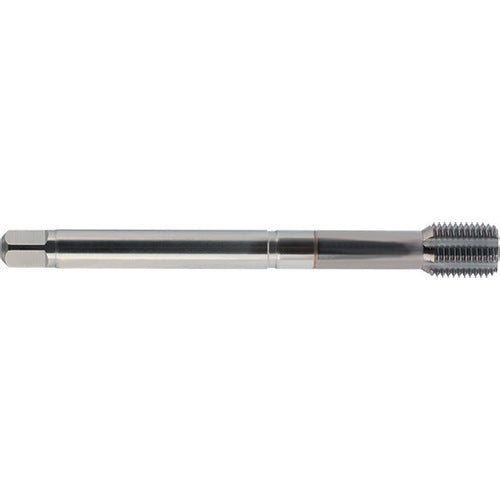

9044950100050 FORM TAP
Item #: GD1444950100050
Brand: Guhring
Model #: 9044950100050
| Product Specifications | |
|---|---|
| Tool Type | Form Tap |
| Thread Standard | Metric Fine |
| Thread Diameter Size (TDZ) | M10 |
| Application | Blind | Through Hole |
| Thread Pitch (TP) | 1 mm |
| Coating | TiCN |
| Overall Length (OAL) | 90 mm |
| Coolant Supply Property (CSP) | without |
| Connection Diameter Machine Side (DCONMS) | 7 mm |
| Chamfer | 1.5-2 Form E |
| Flute Count (NOF) | 6 |
| Series/List # | 4495 |
| Drive Size (DRVS) | 5.5 mm |
| Thread Size | M10 × 1 |
| Thread Tolerance Class (TCTR) | D7|D8 |
| Body Material | HSS-E-PM |
| Tap Standard | DIN 374 |
