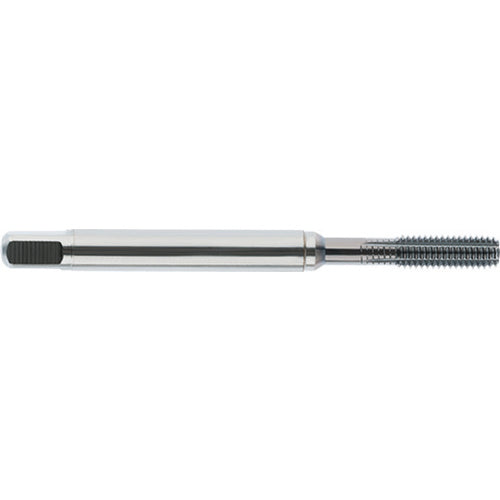

9044920095250 FORM TAP
Item #: GD1444920095250
Brand: Guhring
Model #: 9044920095250
| Product Specifications | |
|---|---|
| Tool Type | Form Tap |
| Application | Blind | Through Hole |
| Thread Diameter Size (TDZ) | 3/8″ |
| Coating | TiCN |
| Overall Length (OAL) | 90 mm |
| Coolant Supply Property (CSP) | without |
| Usable Length (LU) | 39 mm |
| Threads per Inch (TPI) | 24 |
| Flute Count (NOF) | 5 |
| Chamfer | 2-3 Form C |
| Drive Size (DRVS) | 8 mm |
| Series/List # | 4492 |
| Thread Tolerance Class (TCTR) | H7|H8 |
| Thread Size | 3/8″ - 24 |
| Tap Standard | DIN 371 | DIN 376 |
| Body Material | HSS-E-PM |
| Thread Standard | UNF |
