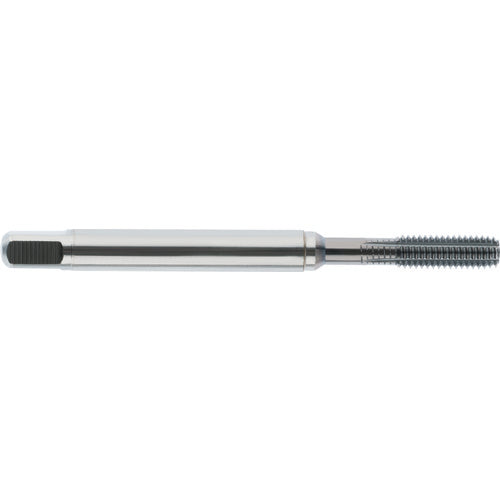

9044870100000 FORM TAP
Item #: GD1444870100000
Brand: Guhring
Model #: 9044870100000
| Product Specifications | |
|---|---|
| Tool Type | Form Tap |
| Tap Standard | DIN 376 |
| Thread Diameter Size (TDZ) | M10 |
| Thread Standard | Metric |
| Thread Pitch (TP) | 1.5 mm |
| Application | Blind | Through Hole |
| Overall Length (OAL) | 100 mm |
| Coating | TiCN |
| Usable Length (LU) | 39 mm |
| Coolant Supply Property (CSP) | without |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Chamfer | 2-3 Form C |
| Flute Count (NOF) | 5 |
| Series/List # | 4487 |
| Drive Size (DRVS) | 8 mm |
| Thread Size | M10 × 1.5 |
| Thread Tolerance Class (TCTR) | D10|D11 |
| Body Material | HSS-E-PM |
