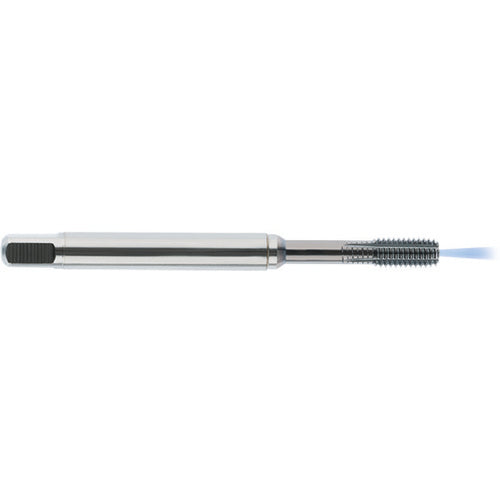

9044830060000 FORM TAP
Item #: GD1444830060000
Brand: Guhring
Model #: 9044830060000
| Product Specifications | |
|---|---|
| Tool Type | Form Tap |
| Tap Standard | DIN 371 | DIN 376 |
| Thread Diameter Size (TDZ) | M6 |
| Thread Standard | Metric |
| Thread Pitch (TP) | 1 mm |
| Application | Blind Hole |
| Overall Length (OAL) | 80 mm |
| Coating | TiCN |
| Usable Length (LU) | 30 mm |
| Coolant Supply Property (CSP) | axial |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Chamfer | 1.5-2 Form E |
| Flute Count (NOF) | 5 |
| Series/List # | 4483 |
| Drive Size (DRVS) | 4.9 mm |
| Thread Size | M6 × 1 |
| Thread Tolerance Class (TCTR) | D8|D9 |
| Body Material | HSS-E-PM |
