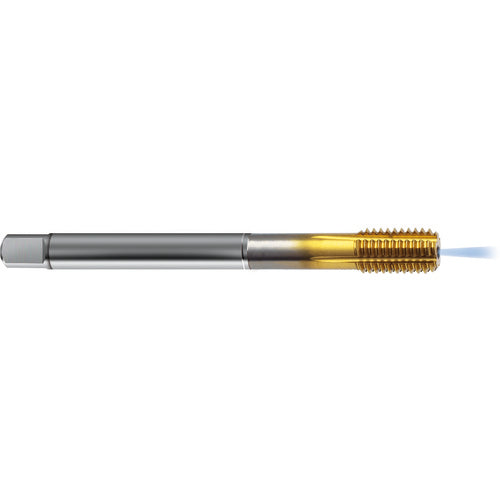

9043830190500 FORM TAP
Item #: GD1443830190500
Brand: Guhring
Model #: 9043830190500
| Product Specifications | |
|---|---|
| Tool Type | Form Tap |
| Application | Blind Hole |
| Thread Diameter Size (TDZ) | 3/4″ |
| Coating | TiN |
| Overall Length (OAL) | 4.921″ |
| Coolant Supply Property (CSP) | axial |
| Connection Diameter Machine Side (DCONMS) | 0.59″ |
| Threads per Inch (TPI) | 10 |
| Flute Count (NOF) | 6 |
| Chamfer | 1.5-2 Form E |
| Drive Size (DRVS) | 0.4421″ |
| Series/List # | 4383 |
| Thread Tolerance Class (TCTR) | H12|H13 |
| Thread Size | 3/4″ - 10 |
| Tap Standard | DIN | ANSI |
| Body Material | HSS-E-PM |
| Thread Standard | UNC |
