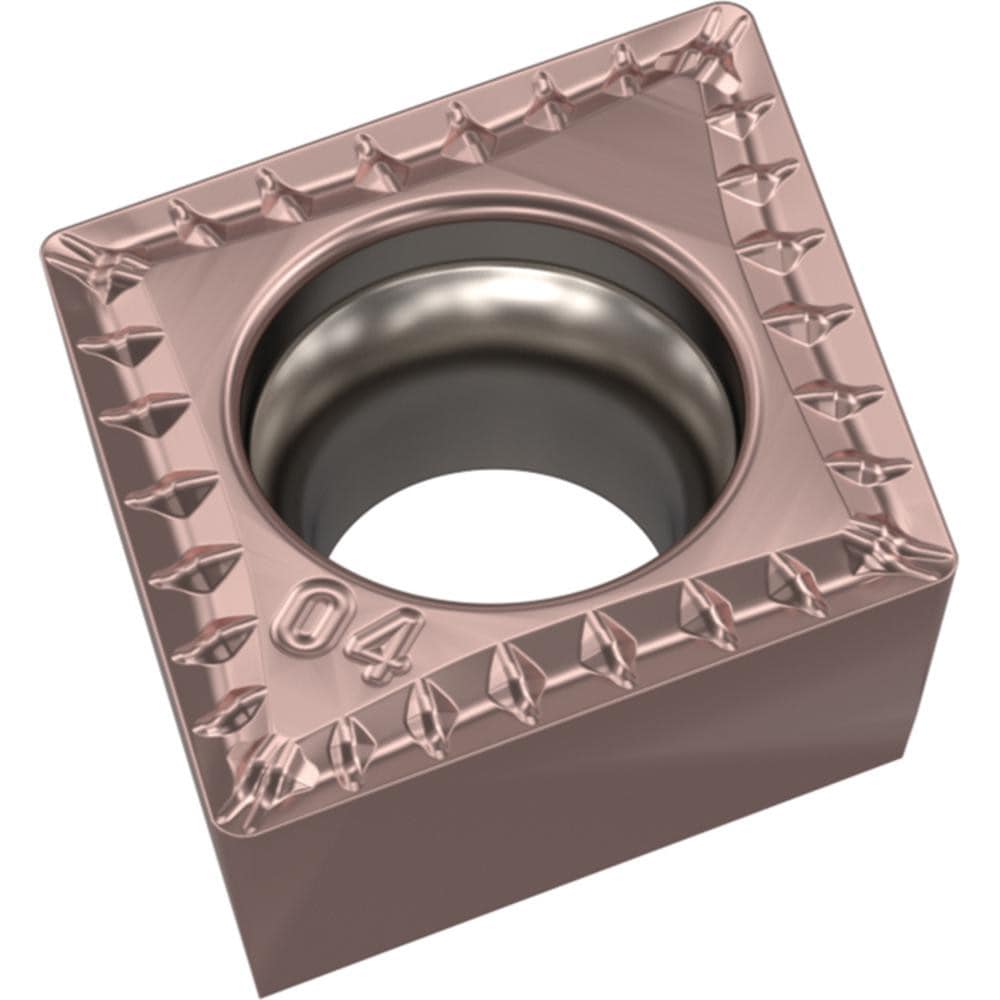

Brand: Widia / Part #: 5623435

Brand: Widia / Part #: 5623435


Item #: 95894309
Brand: Widia
Model #: 5623435

Product Specifications

Insert Style CCMT
Insert Shape Code C
Insert Size Code 3252
Insert Shape Diamond
Coating/Finish TiOCN; TiCN; TiN; Al2O3
Manufacturer Grade WM25CT
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1732
Maximum Depth of Cut (Decimal Inch) 0.1904
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1563
Clearance Code C
Tolerance Code M
Included Angle 80.00
Relief Angle 7.000
Series CCMT
Coating Process MTCVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.3808
Number Of Cutting Edges 2
Primary Workpiece Material Stainless Steel
Primary Workpiece Material Code M
Secondary Workpiece Material Super-alloys & Titanium; Steel
Secondary Workpiece Material Code P; S
Ansi Code CCMT3252MU
Iso Code CCMT09T308MU
Manufacturers Catalog Number CCMT3252MU
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker MU
Style CCMT
Width (Decimal Inch - 4 Decimals) 0.3750
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
