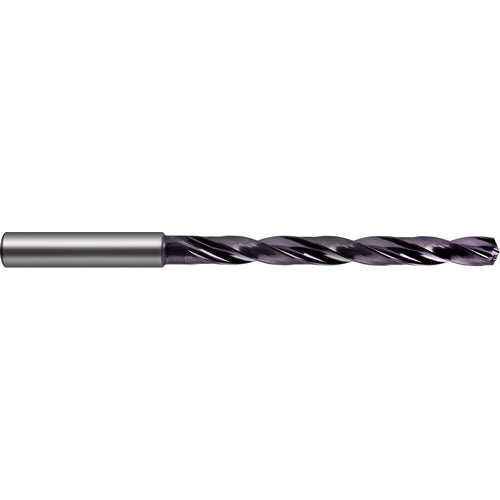

8.6 mm Dia. × 10 mm Shank × 87 mm Flute Length × 131 mm OAL, 7xD, 140°, nano-FIREX, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: GD1054990086000
Brand: Guhring
Model #: 9054990086000
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 8.6 mm |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.3386″ |
| Measurement Type | Metric |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.6 mm |
| Series/List # | 5499 |
| Length Group | 7xD |
| Usable Length (LU) | 74.1 mm |
| Coating | nano-FIREX |
| Length Chip Flute (LCF) | 87 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Overall Length (OAL) | 131 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees |
