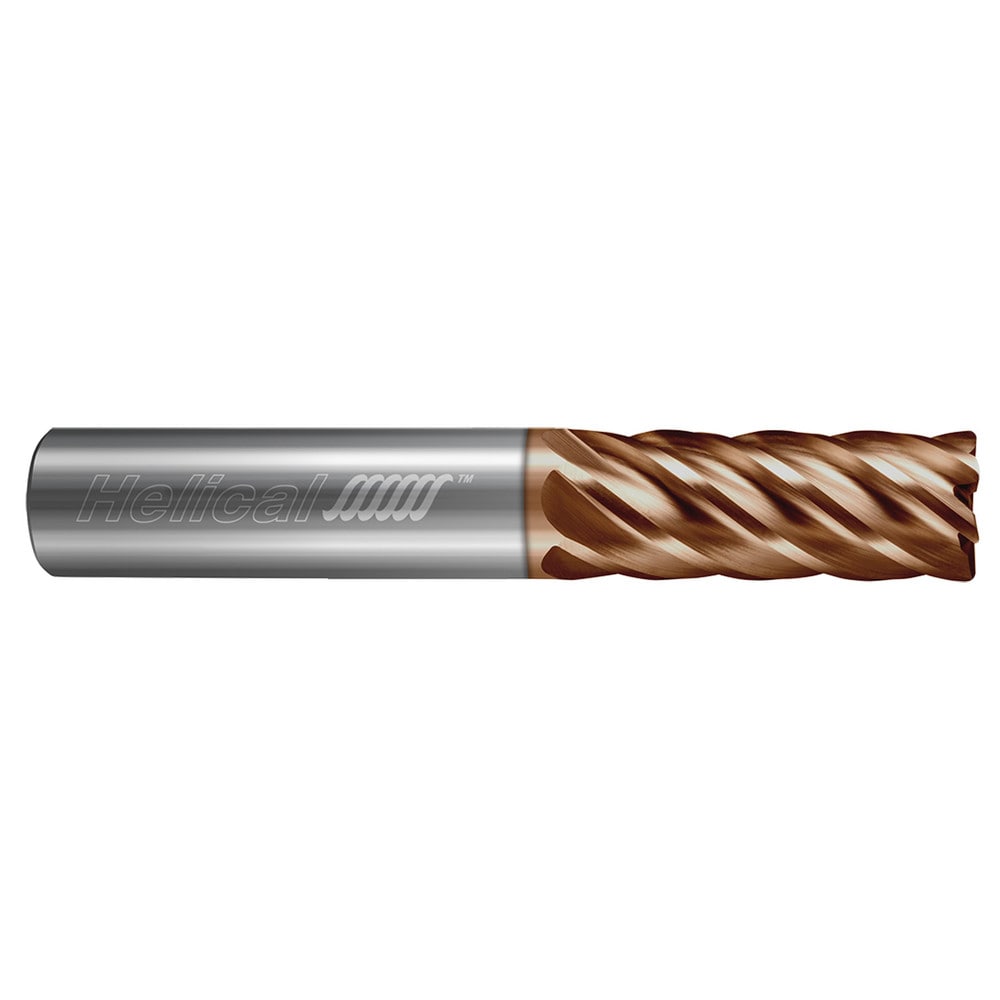

Brand: Helical Solutions / Part #: 83349
Item #: 97077044
Brand: Helical Solutions
Model #: 83349
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Corner Radius (Decimal Inch) | 0.0900 |
| Coating/Finish | Tplus |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 6 |
| Single Or Double End | Single |
| Overall Length (Inch) | 3-1/2 |
| Length of Cut (Inch) | 1-5/8 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.5000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.6250 |
| Extended Reach | No |
| Shank Type | Round |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Series | End Mills for Stainless & High Temp - 6 Flute - Corner Radius - Variable Pitch |
