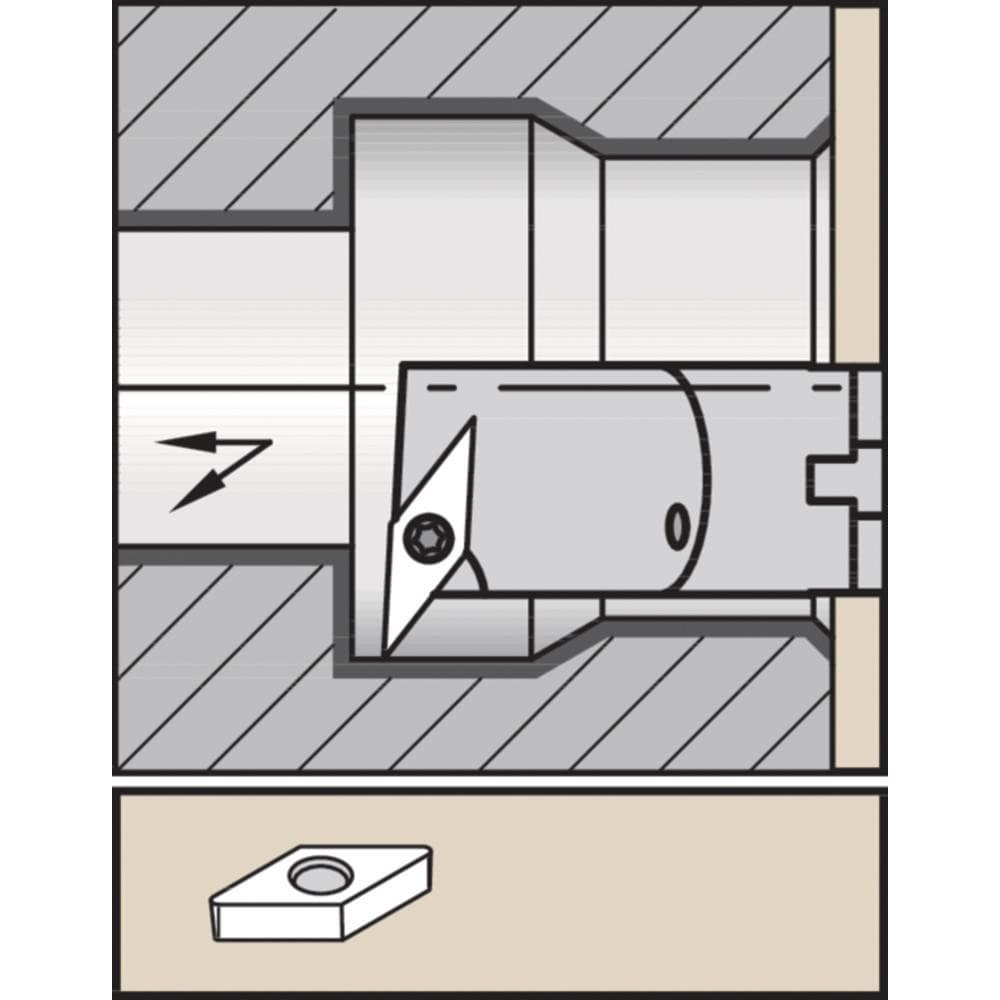

Brand: Widia / Part #: 3883424
Item #: 02775872
Brand: Widia
Model #: 3883424
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 1.3000 |
| Maximum Bore Depth (Decimal Inch) | 3.0000 |
| Toolholder Style | SVUBL |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 12.0000 |
| Overall Length (Inch) | 12 |
| Compatible Insert Size Code | VB..332 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Left Hand |
| Rake Angle | -6.000 |
| Lead Angle | -3.000 |
| Series | A-SVUB |
| Insert Inscribed Circle (Inch) | 3/8 |
| Compatible Insert Thickness (Decimal Inch) | 0.1875 |
| Compatible Insert Thickness (mm) | 4.76 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Center to Cutting Edge (Decimal Inch) | 0.7500 |
| Center to Cutting Edge (Inch) | 3/4 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | A16TSVUBL3 |
| Radial Rake | 0 |
| Coolant Through | Yes |
