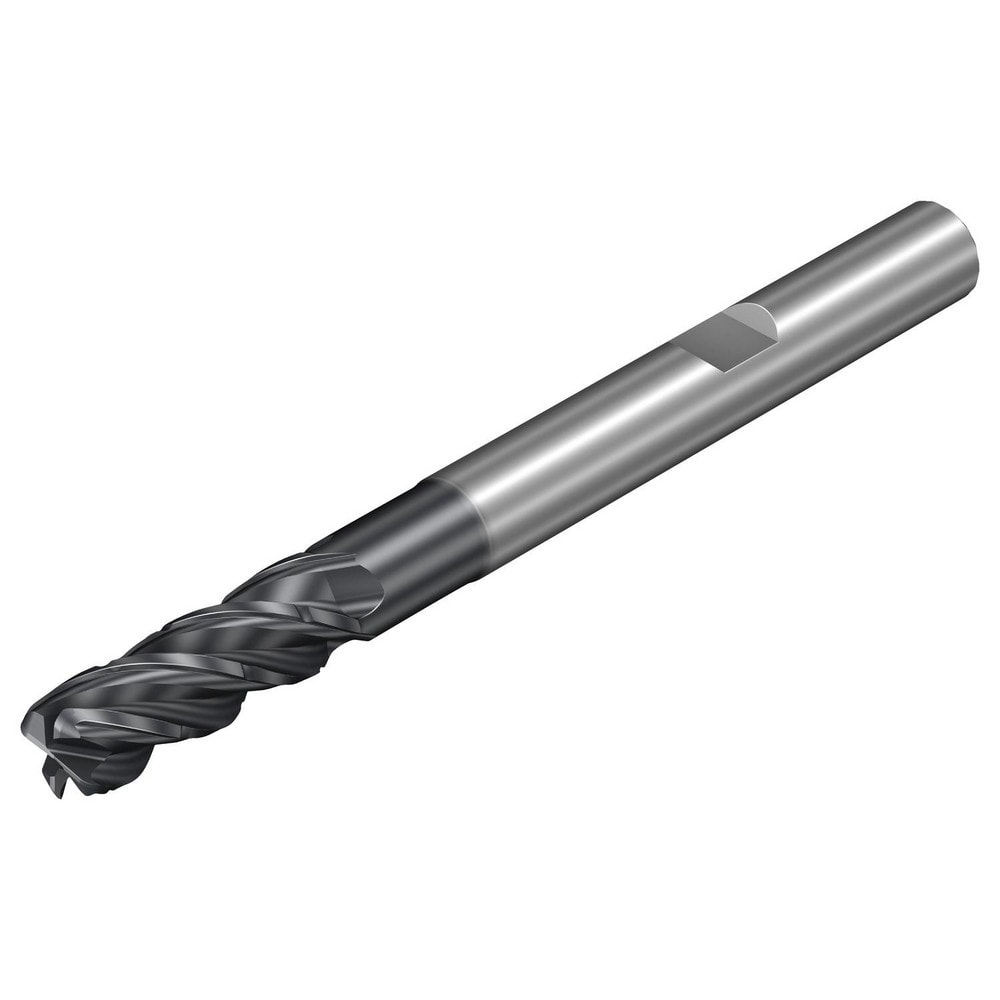

Brand: Sandvik Coromant / Part #: 8213530
Item #: 97604441
Brand: Sandvik Coromant
Model #: 8213530
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Coating/Finish | AlCrN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Overall Length (mm) | 87.0000 |
| Length of Cut (mm) | 30.0000 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 0.3937 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.4252 |
| Chipbreaker | Yes |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.1811 |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.0000 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Series | CoroMill Dura |
| Coating Classification | PVD |
| Manufacturers Catalog Number | 1K354-1000-200-XD 1730 |
