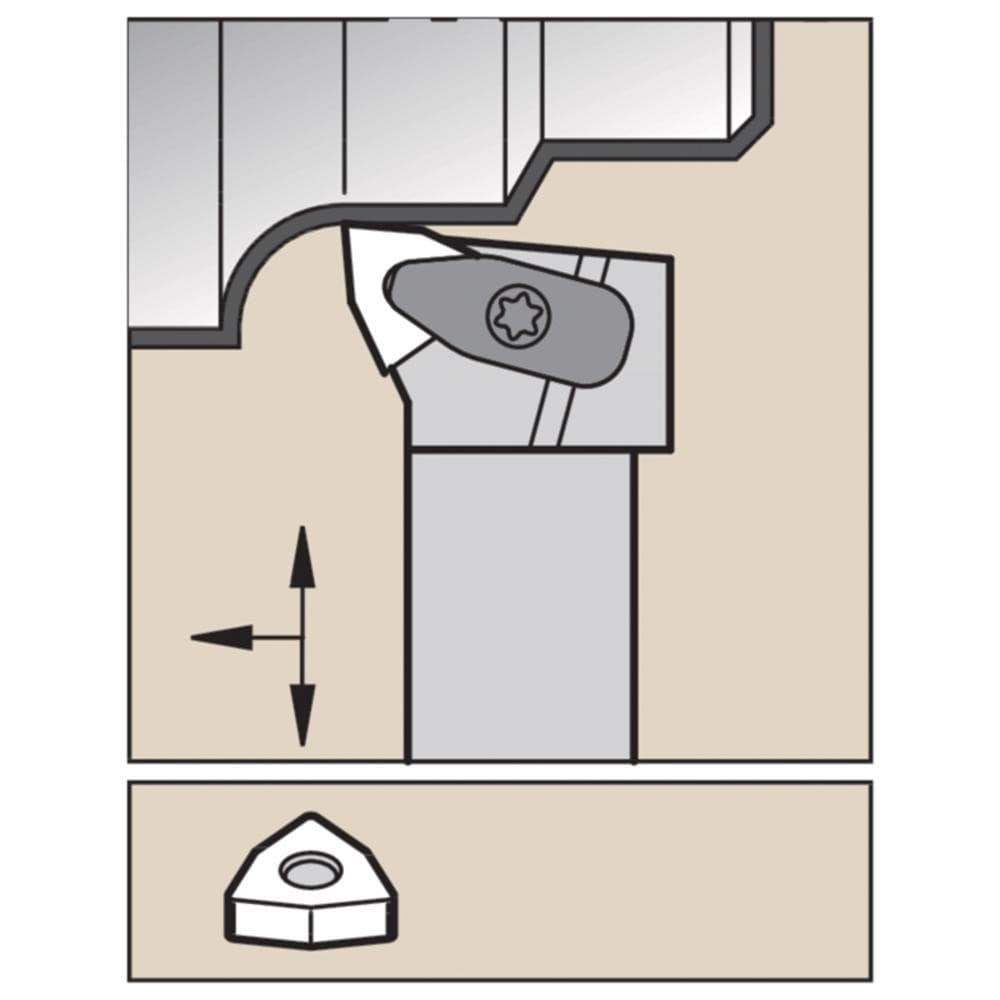

Brand: Widia / Part #: 5696758
Item #: 98529092
Brand: Widia
Model #: 5696758
Product Specifications
| Cutting Direction | Right Hand |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 0804.. |
| Toolholder Style | DWLNR |
| Rake | Negative |
| Rake Angle | -5 (Axial);-5 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 95.000 |
| Insert Holding Method | Clamp |
| Insert Compatibility | WN..0804.. |
| Shank Width (mm) | 20.00 |
| Shank Height (mm) | 20.00 |
| Series | DWLN |
| Overall Length (mm) | 125.0000 |
| Cutting Tool Application | Facing; Copying; Turning |
| Head Length (mm) | 32.99 |
| Back of Bar to Cutting Edge (mm) | 25.00 |
| Primary Workpiece Material | Universal |
| Insert Width (mm) | 12.70 |
| Toolholder Material | Steel |
| ISO Number | DWLNR2020K08KC04 |
| Complete Insert Compatibility | WN.. |
| Insert Thickness | 4.76 |
| Coolant Through | No |
| Insert Inscribed Circle (mm) | 12.70 |
