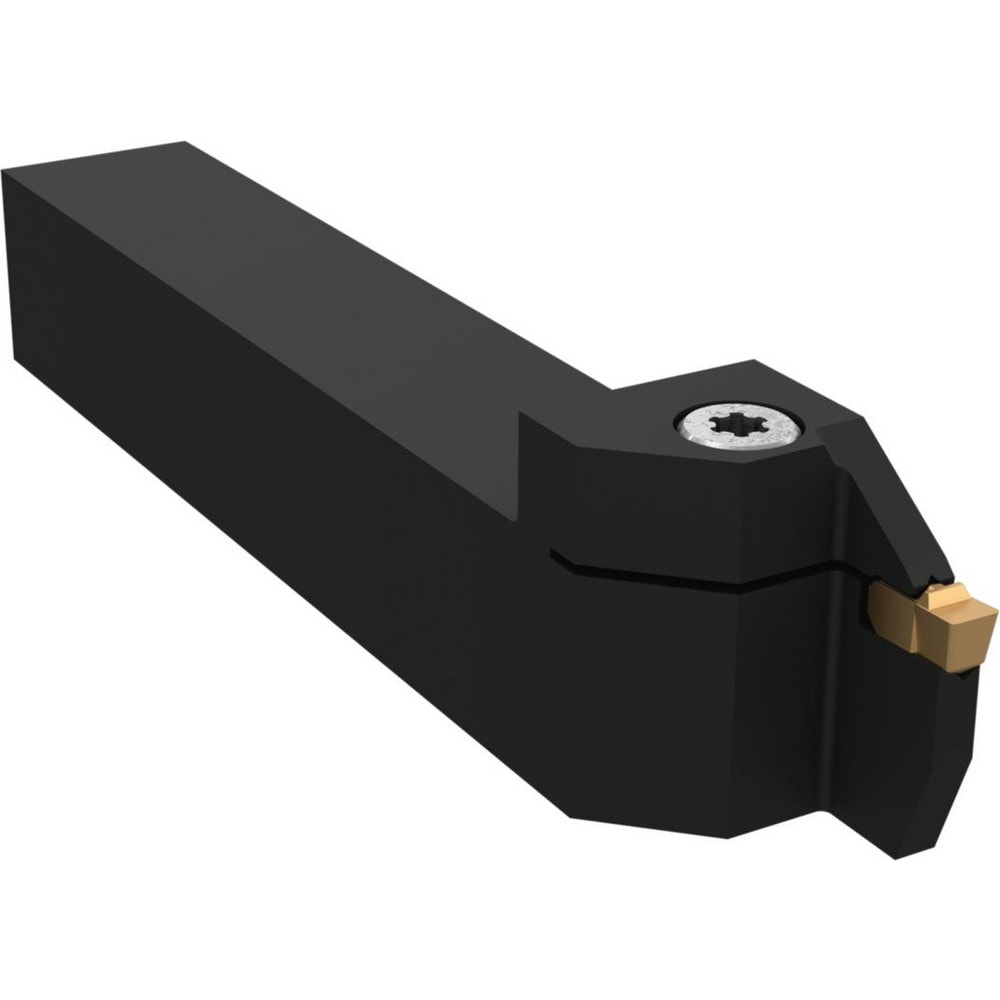

Brand: Widia / Part #: 6949702
Item #: 98295413
Brand: Widia
Model #: 6949702
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (mm) | 12.00 |
| Hand of Holder | Left Hand |
| Maximum Groove Width (mm) | 4.00 |
| Minimum Groove Width (mm) | 4.00 |
| Toolholder Style | WGCSM |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 0400 |
| Insert Compatibility | WG0400M04P04 |
| Shank Height (mm) | 20.00 |
| Shank Length (mm) | 127.500 |
| Shank Width/Diameter (mm) | 20.00 |
| Series | WGCSM |
| Overall Length (mm) | 127.5000 |
| Cutting Tool Application | Grooving; Facing; Cut-Off; Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7917 |
| Head Height (mm) | 28.500 |
| Head Length (mm) | 28.00 |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 4.0 |
| Coolant Through | No |
