Brand: Widia / Part #: 3879736
Item #: 98263395
Brand: Widia
Model #: 3879736
Product Specifications
| Cutting Direction | Neutral |
| Hand of Holder | Neutral |
| Compatible Insert Size Code | 10T3 |
| Toolholder Style | SRDCN |
| Rake | Positive |
| Rake Angle | 0 (Axial);0 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 9.000 |
| Insert Holding Method | Screw |
| Insert Compatibility | RC..10T3 |
| Shank Width (mm) | 20.00 |
| Shank Height (mm) | 20.00 |
| Series | SRDC |
| Overall Length (mm) | 125.0000 |

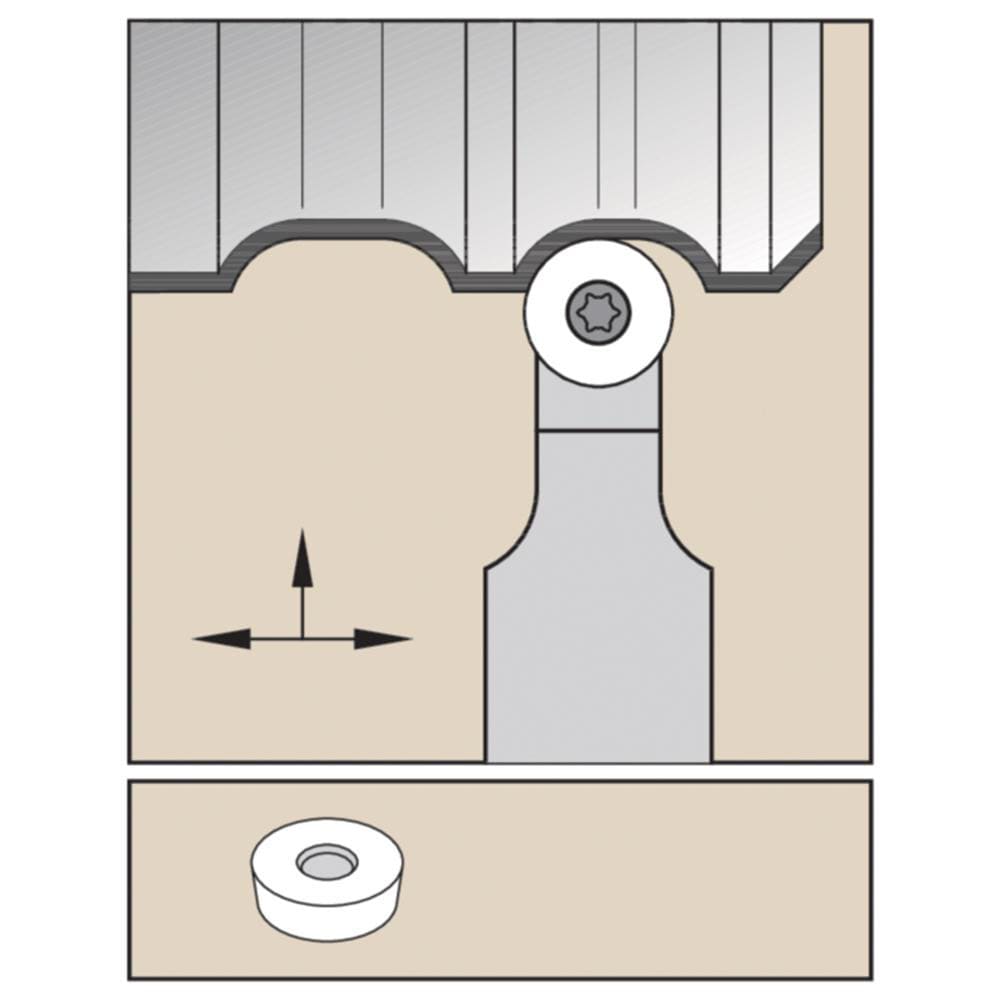

| Cutting Tool Application | Facing; Copying; Turning |
| Head Length (mm) | 19.99 |
| Back of Bar to Cutting Edge (mm) | 15.00 |
| Primary Workpiece Material | Universal |
| Insert Width (mm) | 10.00 |
| Toolholder Material | Steel |
| ISO Number | SRDCN2020K10 |
| Complete Insert Compatibility | RC.. |
| Insert Thickness | 3.97 |
| Coolant Through | No |
| Insert Inscribed Circle (mm) | 10.00 |
