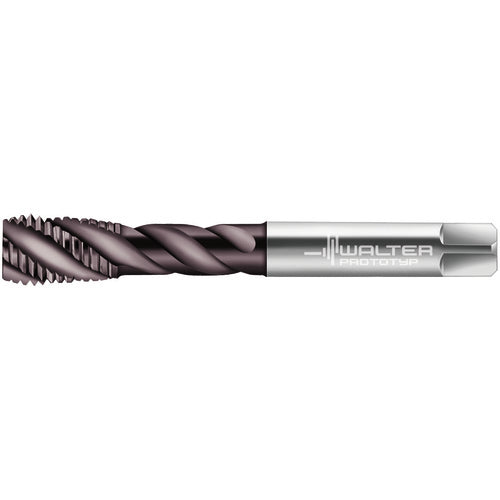

M20x2.5 6HX 4 Flute HSS THL Spiral Flute Tap
Item #: FK106245564
Brand: Walter-Prototyp
Model #: 6245564
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M20 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 2.5 mm |
| Standard | DIN 376 |
| Thread Standard | Metric |
| Coating | TiAlN |
| Overall Length (OAL) | 140 mm |
| Flute Length | 70 mm |
| Thread Cutting Part Length (THL) | 25 mm |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|45 Degrees |
| Measurement Type | Metric |
| Cutting Edge Material | HSS |
