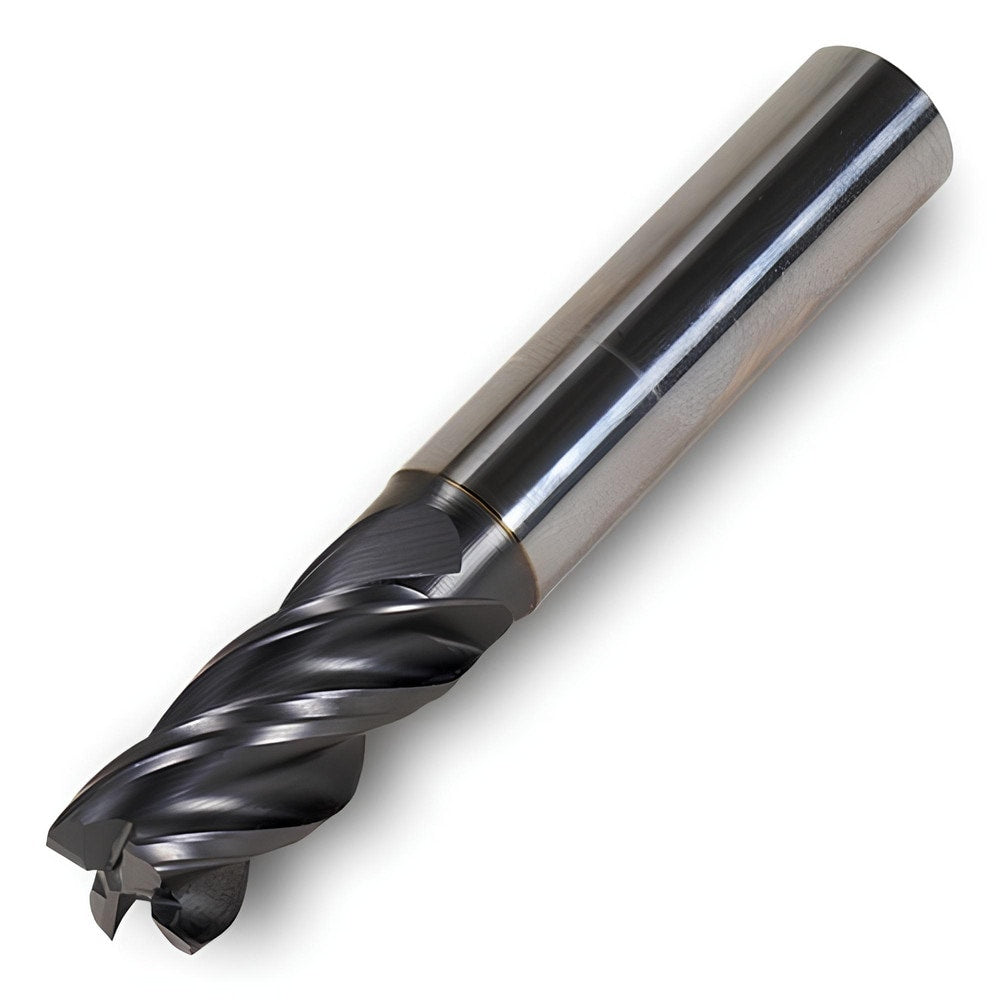

Brand: Ingersoll Cutting Tools / Part #: 2944427
Item #: 94084316
Brand: Ingersoll Cutting Tools
Model #: 2944427
Product Specifications
| Mill Diameter (mm) | 8.00 |
| Chamfer Width (mm) | 7.620 |
| Coating/Finish | TiN; TiAlN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Overall Length (mm) | 63.0000 |
| Length of Cut (mm) | 18.0000 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Flute Direction | Right Hand |
| Chipbreaker | No |
| End Type | Corner Chamfer |
| Chamfer Angle | 45.000 |
| Length Type | Extra Long |
| Flute Type | Helical |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Neck Diameter (mm) | 8.000 |
| Reach Length (mm) | 26.00 |
| Maximum Helix Angle | 38 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Hard Material; Non-Ferrous Metal; Super Alloys & Titanium |
| Secondary Workpiece Material Code | S; H; N |
| Material Grade | IN2505 |
| Series | 47CRQ |
