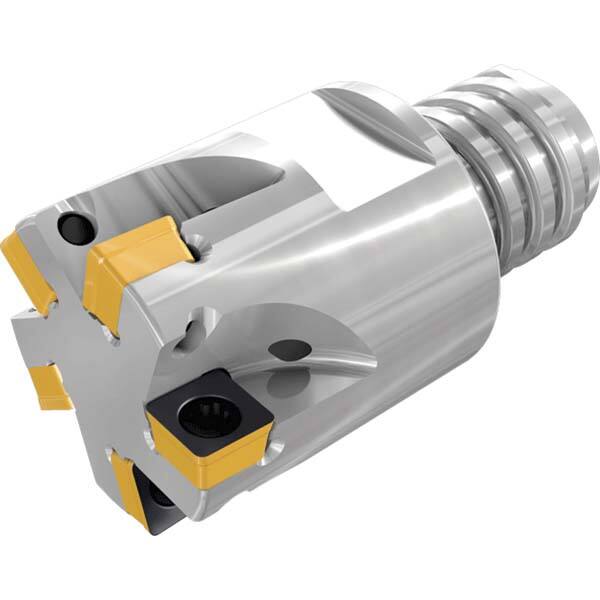

Iscar - Indexable Square-Shoulder End Mills Cutting Diameter (mm): 12.00 Cutting Diameter (Decimal Inch): 0.4720
Item #: 47475751
Brand: Iscar
Model #: 3340326
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (mm): 12.00 ; Cutting Diameter (Decimal Inch): 0.4720 ; Shank Diameter (mm): 11.6000 ; Shank Diameter (Decimal Inch): 0.4560 ; Modular Connection Size: T08 ; Overall Length/Projection (mm): 23.50
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4720 |
| Shank Diameter (mm) | 11.6000 |
| Shank Diameter (Decimal Inch) | 0.4560 |
| Modular Connection Size | T08 |
| Overall Length/Projection (mm) | 23.50 |
| Overall Length/Projection (Decimal Inch) | 0.9251 |
| Series | E90SO |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 3.50 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Weldon Flat | No |
| Modular Connection Thread Size | T08 |
| Toolholder Material | Steel |
| Toolholder Material | Steel |
| Through Coolant | Coolant Through |
| Shank Diameter (Decimal Inch) | 0.4560 |
| Series | E90SO |
| Overall Length (Decimal Inch) | 0.92500 |
| Insert Holding Method | Screw |
