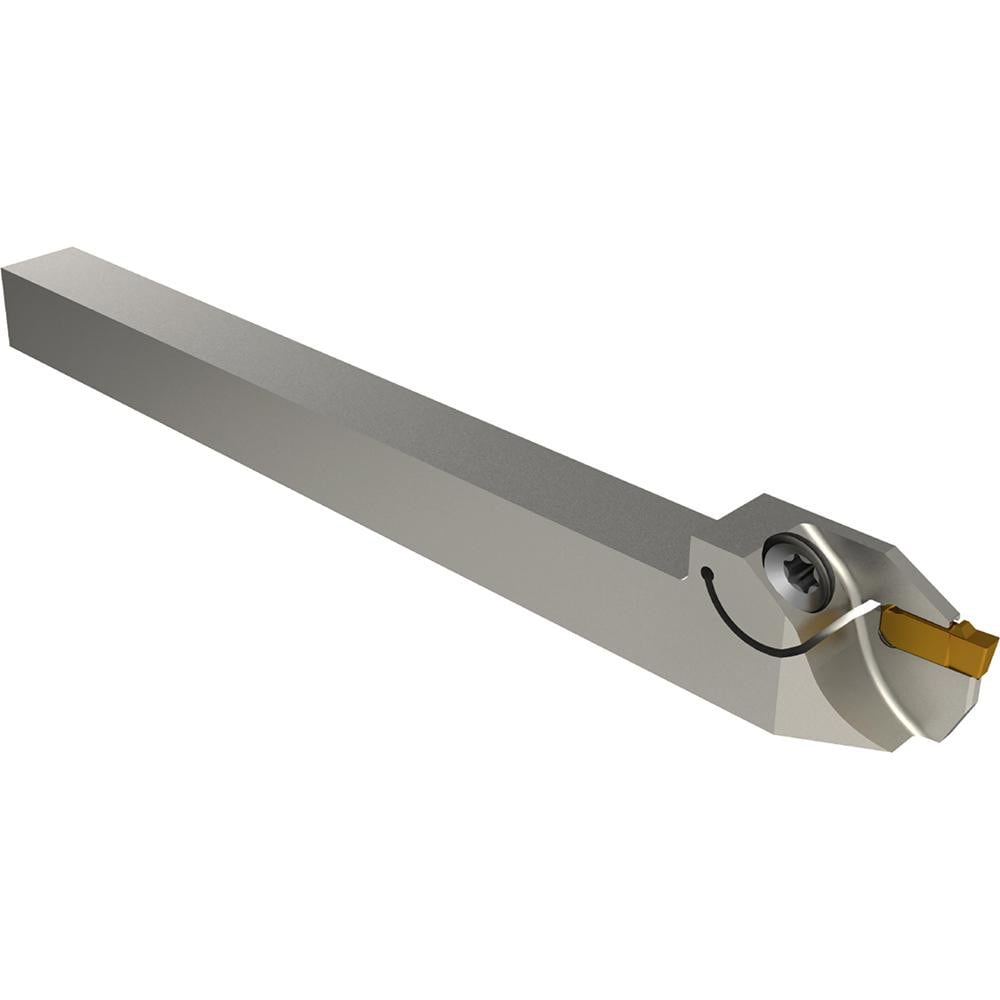

Brand: Widia / Part #: 6765342
Item #: 98065915
Brand: Widia
Model #: 6765342
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Hand of Holder | Right Hand |
| Maximum Groove Width (Decimal Inch) | 0.0790 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Toolholder Style | WGCSC |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 0200 |
| Insert Compatibility | WG0200M02P02 |
| Shank Height (Inch) | 3/8 |
| Shank Height (Decimal Inch) | 0.3750 |
| Shank Length (Decimal Inch) | 3.6930 |
| Shank Width/Diameter (Decimal Inch) | 0.3750 |
| Shank Width/Diameter (Inch) | 3/8 |
| Series | WGC |
| Overall Length (Decimal Inch) | 4.5000 |
| Cutting Tool Application | Grooving; Facing; Cut-Off; Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3750 |
| Head Height (mm) | 13.520 |
| Head Length (Decimal Inch) | 0.8071 |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 2.0 |
| Coolant Through | No |
