Marson - Blind Rivets Type: Tri Folding Head Type: Dome - Americas Industrial Supply

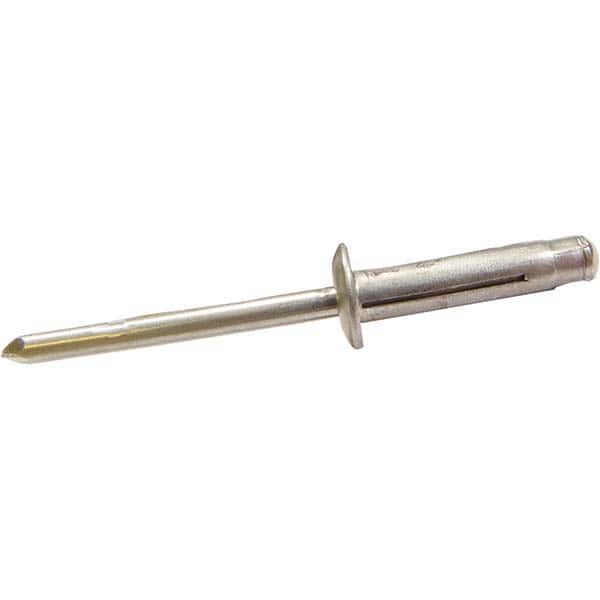

Marson - Blind Rivets Type: Tri Folding Head Type: Dome


Item #: 10330801
Brand: Marson
Model #: M56294

Features and Benefits

Tri folding rivets have three legs that split behind the workpiece to secure the rivet in place.
Dome head types have domed, cylindrical heads with low profiles. They are commonly used for their large bearing surface and versatility.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.

Product Specifications

Blind Rivets; Type: Tri Folding ; Head Type: Dome ; Size Code: 0625 ; Rivet Material: Aluminum ; Mandrel Material: Aluminum ; Minimum Grip (Decimal Inch): 0.0390
Type Tri Folding
Head Type Dome
Size Code 0625
Rivet Material Aluminum
Mandrel Material Aluminum
Minimum Grip (Decimal Inch) 0.0390
Maximum Grip (Decimal Inch) 0.3540
Head Diameter (Decimal Inch) 0.3860
Minimum Hole Diameter (Decimal Inch) 0.1920
Maximum Hole Diameter (Decimal Inch) 0.1960
Maximum Hole Diameter (mm) 0.196
Drill Size (Wire) #11
Body Diameter (Decimal Inch) 0.1875
Color Black
Fastener Standard IFI 114 Grade 11
Head Height (Decimal Inch) 0.0700
$931.69
