Brand: Widia / Part #: 2829566
Item #: 02809473
Brand: Widia
Model #: 2829566

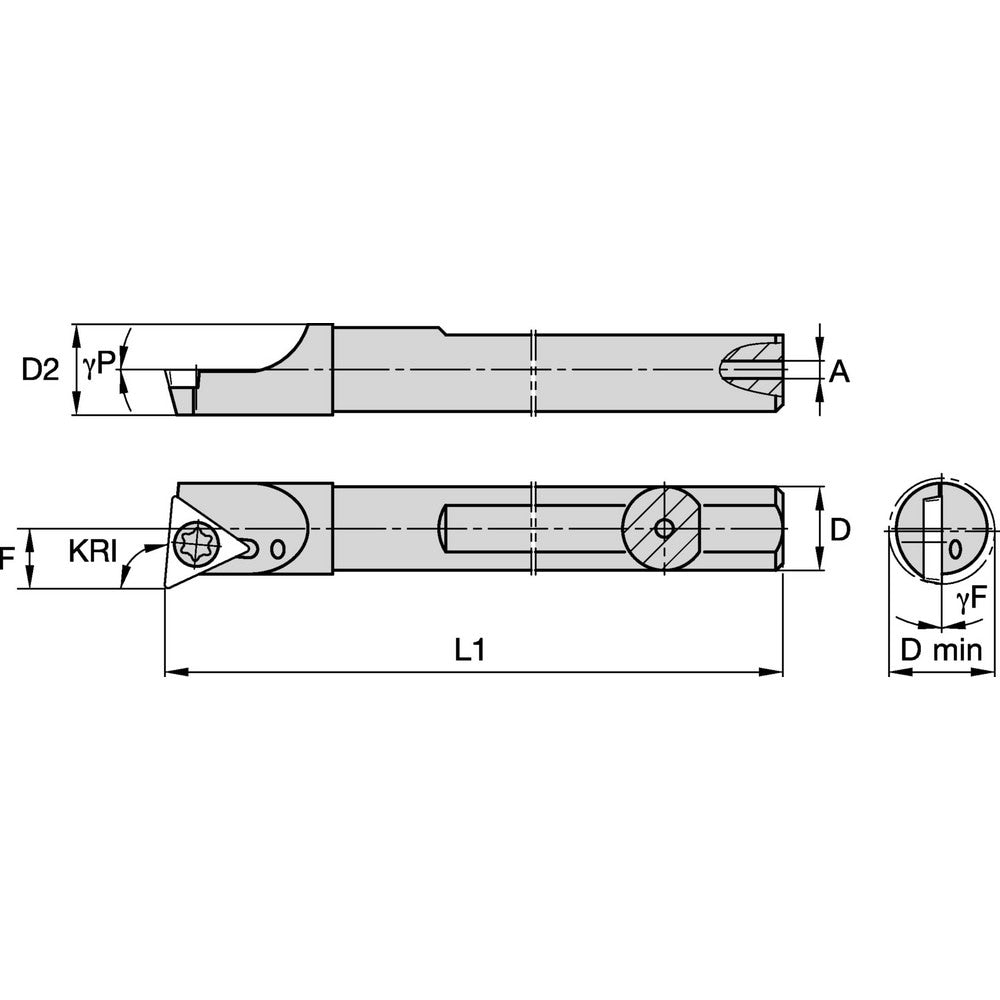

Product Specifications
| Minimum Bore Diameter (mm) | 7.060 |
| Maximum Bore Depth (mm) | 18.00 |
| Toolholder Style | FSBM |
| Tool Material | Steel |
| Shank Diameter (mm) | 6.0000 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 101.6000 |
| Compatible Insert Size Code | TD..07S102 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | 0.000 |
| Lead Angle | 95.000 |
| Series | FSBM |
| Insert Inscribed Circle (Decimal Inch) | 0.1598 |
| Compatible Insert Thickness (Decimal Inch) | 0.0469 |
| Compatible Insert Thickness (mm) | 1.19 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (mm) | 6.71 |
| Center to Cutting Edge (mm) | 3.71 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.0469 |
| Insert Thickness (Inch) | 3/64 |
| Coolant Hole Diameter (mm) | 1.02 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | FSBM61005R |
| Radial Rake | 5 |
| Neck Diameter (mm) | 6.200 |
| Coolant Through | Yes |
