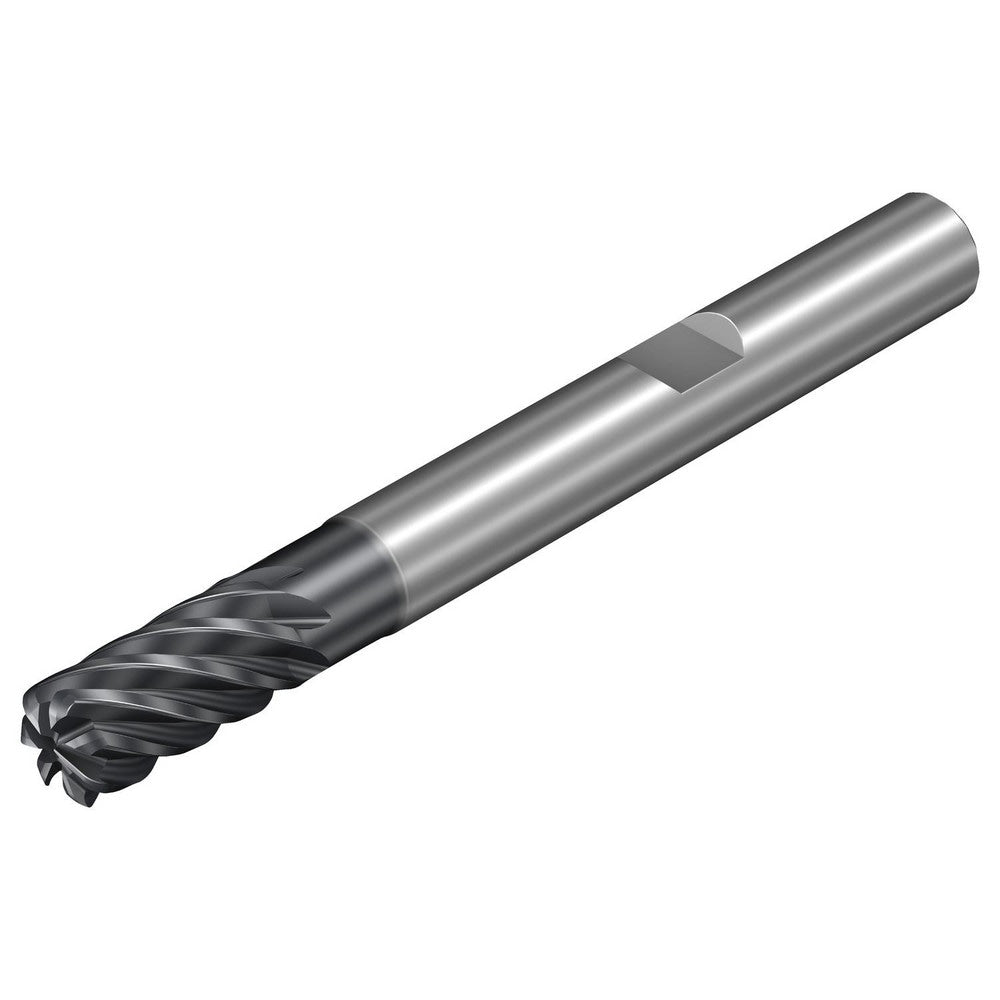

Brand: Sandvik Coromant / Part #: 8213640
Item #: 97421895
Brand: Sandvik Coromant
Model #: 8213640
Product Specifications
| Mill Diameter (mm) | 25.00 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Coating/Finish | AlCrN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 7 |
| Single Or Double End | Single |
| Overall Length (mm) | 135.0000 |
| Length of Cut (mm) | 50.0000 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 0.9843 |
| Flute Direction | Right Hand |
| Helix Angle | 37? |
| Overall Length (Decimal Inch) | 5.3150 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.9685 |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (mm) | 25.0000 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Series | CoroMill Dura |
| Coating Classification | PVD |
| Manufacturers Catalog Number | 1K337-2500-300-XD 1730 |
