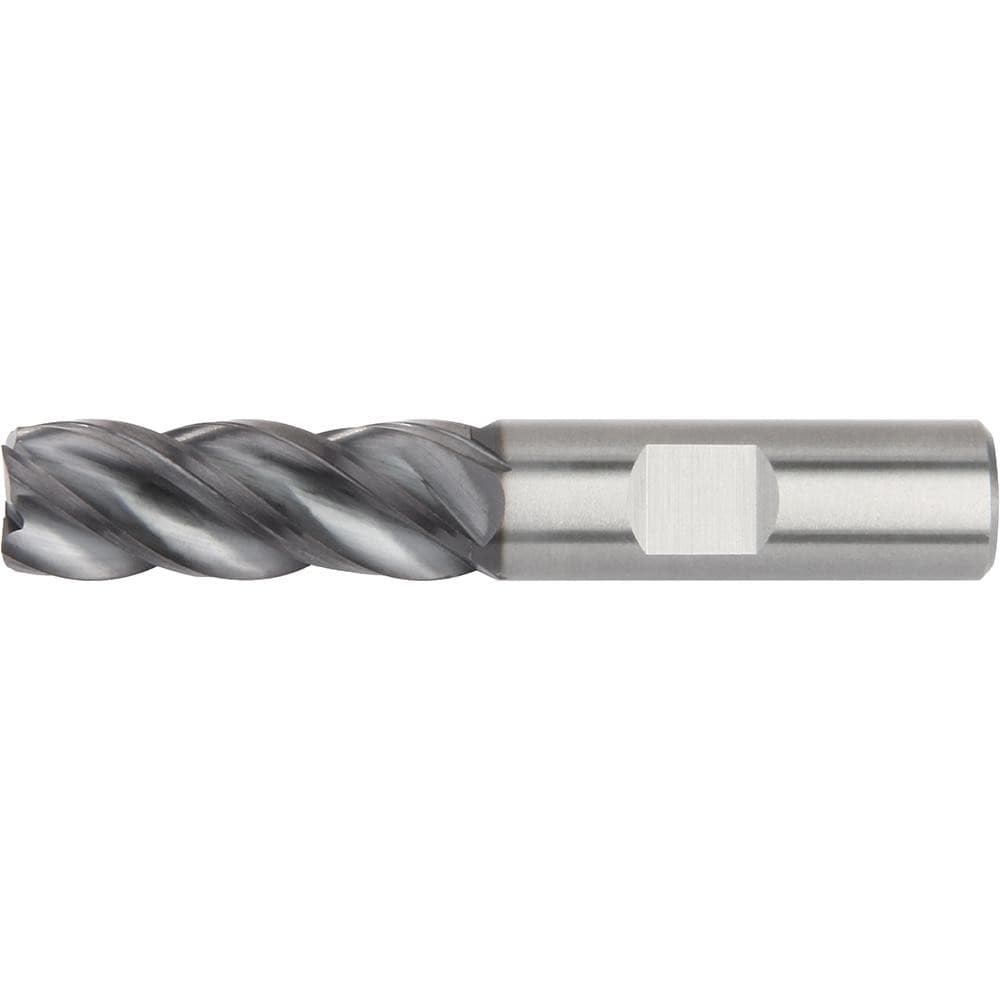

Brand: Widia / Part #: 5576525
Item #: 17981994
Brand: Widia
Model #: 5576525
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1-1/2 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1 |
| Finish/Coating | AlTiN |
| Overall Length (Inch) | 4 |
| Helix Angle | 38 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Length of Cut (Decimal Inch) | 1.5000 |
| Material Grade | WP15PE |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Flute Type | Variable Index |
| Helix Style | Medium |
| Length Type | Regular |
| Reach Length (Decimal Inch) | 1.5000 |
| Reach Length (mm) | 38.10 |
| Through Coolant | No |
| Series | 4V05 |
