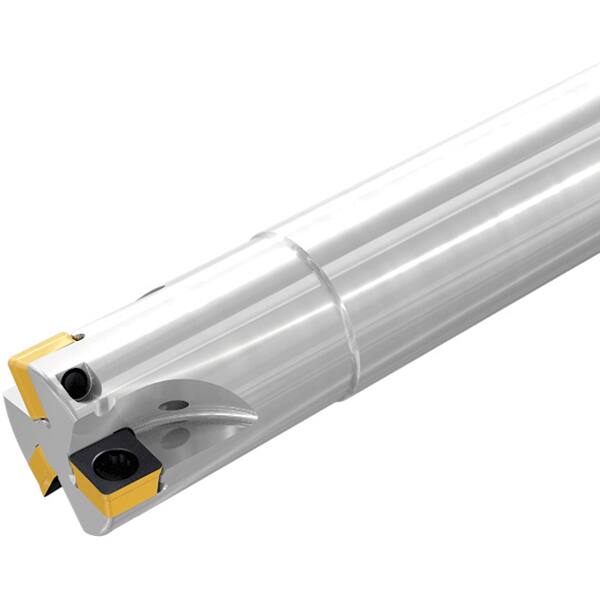

Iscar - Indexable Square-Shoulder End Mills Cutting Diameter (mm): 20.00 Cutting Diameter (Decimal Inch): 0.7870
Item #: 15110323
Brand: Iscar
Model #: 3340320
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (mm): 20.00 ; Cutting Diameter (Decimal Inch): 0.7870 ; Shank Type: Cylindrical ; Shank Diameter (mm): 20.0000 ; Shank Diameter (Decimal Inch): 0.7870 ; Overall Length/Projection (mm): 110.00
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7870 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.0000 |
| Shank Diameter (Decimal Inch) | 0.7870 |
| Overall Length/Projection (mm) | 110.00 |
| Overall Length/Projection (Decimal Inch) | 4.3307 |
| Series | E90SO |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 3.50 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Weldon Flat | No |
| Shank Length (Decimal Inch) | 4.3300 |
| Shank Length (mm) | 110.000 |
| Toolholder Material | Steel |
| Toolholder Material | Steel |
| Through Coolant | Coolant Through |
| Shank Diameter (Decimal Inch) | 0.7870 |
| Series | E90SO |
| Overall Length (Decimal Inch) | 4.33000 |
| Insert Holding Method | Screw |
