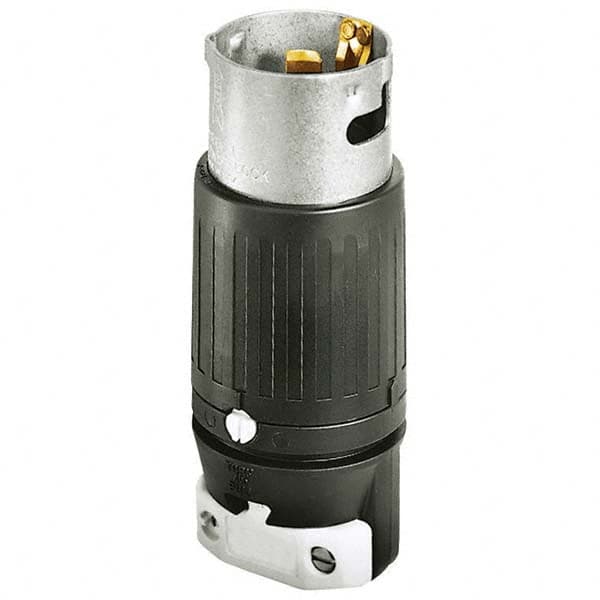

Bryant Electric - Twist Lock Plugs & Connectors Connector Type: Plug Grade: Industrial
Item #: 10091627
Brand: Bryant Electric
Model #: CS8165
Product Specifications
Twist Lock Plugs & Connectors; Connector Type: Plug ; Grade: Industrial ; NEMA Configuration: NonNEMA ; Amperage: 50 ; Voltage: 480 VAC ; Number of Poles: 3
| Connector Type | Plug |
| Grade | Industrial |
| NEMA Configuration | NonNEMA |
| Amperage | 50 |
| Voltage | 480 VAC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Color | Black/White |
| Resistance Features | Impact Resistance |
| Maximum Cord Diameter (Decimal Inch) | 1-1/4 |
| Maximum Cord Diameter (mm) | 31-3/4 |
| Minimum Cord Diameter (mm) | 21.08 |
| Minimum Cord Diameter (Decimal Inch) | 0.8300 |
| Number of Phases | 3 |
| Grounding Style | Self-Grounding |
| Ingress Protection Rating | IP20 |
| Material | Composite |
| Standards Met | UL Listed; CSA Certified |
