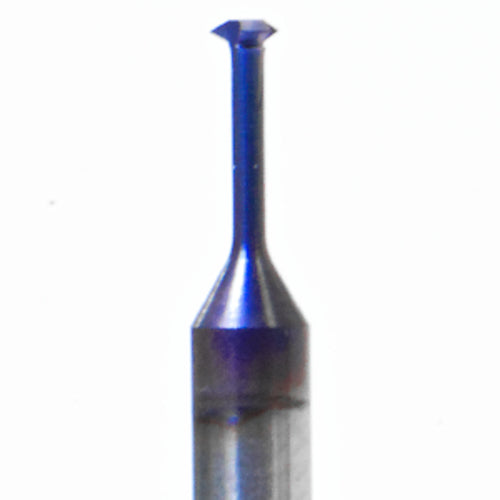

MTI 03019 C5 A60 MT11
Item #: FF5840300322
Brand: Carmex
Model #: 40300322
| Product Specifications | |
|---|---|
| Thread Size | 8-32|10-24|3-56|4-48|M2.5 × 0.45 |
| Coating | PVD 3x Layer Sub-Micron Coated |
| Thread Pitch (TP) | 0.35 mm - 0.6 mm |
| Application | MINI MILL THREAD |
| Threads per Inch (TPI) | 40-72 |
| Applicable Material | General Purpose |
| Thread Standard | 60-DEG PART PROF |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Cutting Position | Internal |
| Cutting Diameter (DC) | 1.9 mm |
| Series/List # | MTI |
| Functional Length (LF) | 5.1 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 1.5″ |
| Grade | MT11 |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Left Hand|Right Hand |
| Coolant Supply Property (CSP) | No |
