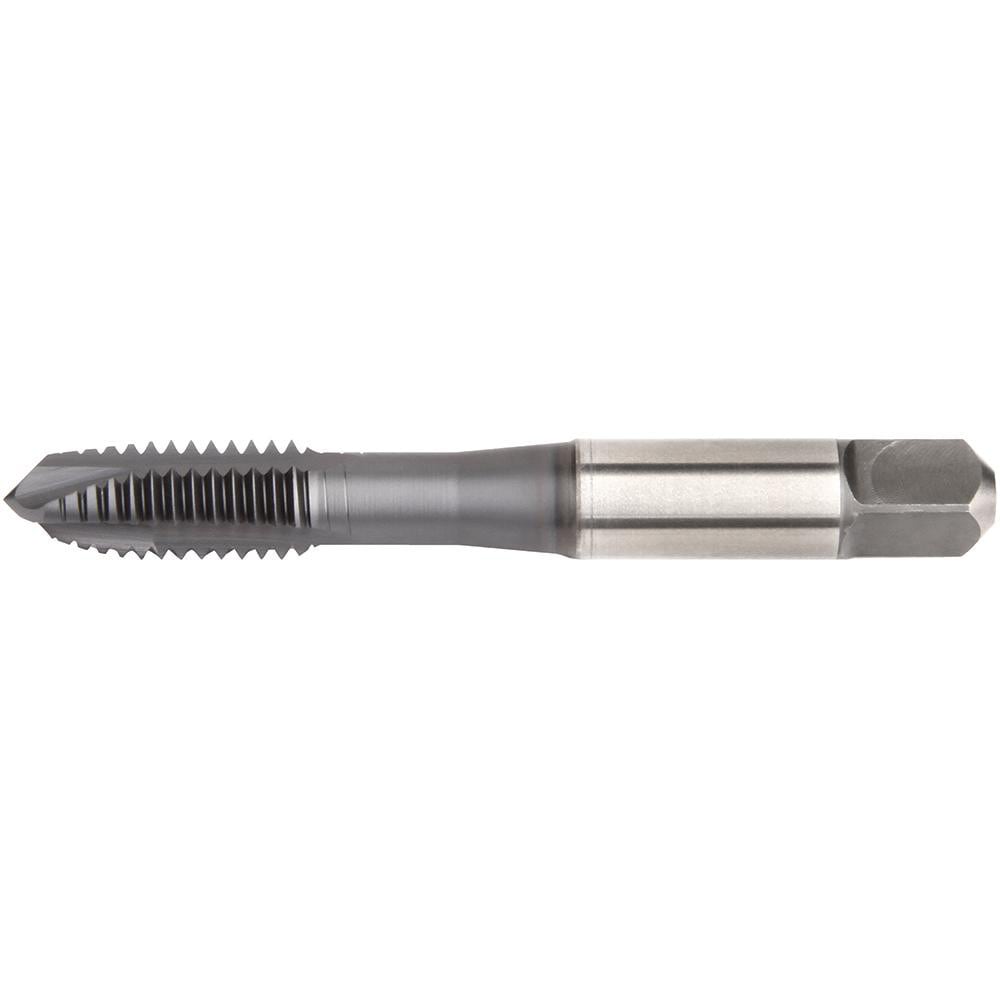

Brand: Widia / Part #: 5365774
Item #: 94836434
Brand: Widia
Model #: 5365774
Product Specifications
| Thread Size (Inch) | #10-24 |
| Number Of Flutes | 2 |
| Chamfer | Plug |
| Thread Limit | H3 |
| Class Of Fit | H3 |
| Coating/Finish | Black Oxide |
| Threads per Inch | 24 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 0.9100 |
| Thread Pitch (Decimal Inch) | 0.0417 |
| Thread Standard | UNC |
| Material Grade | WP49EG |
| Thread Length (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 2.3700 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Square Size (Decimal Inch) | 0.1500 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
